Sorry, this product is not available to purchase.
- Estimated life of 45.7 years based on 3 hours use per day
- No lead or mercury means easy and environmentally safe disposal
Lighting Facts Per Bulb
|Brightness 1000 lumens|
Estimated Yearly Energy Cost $1.2
Based on 3 hrs/day, 11¢/kWh
Cost depends on rates and use
Based on 3 hrs/day45.7 years
|Energy Used10 watts|

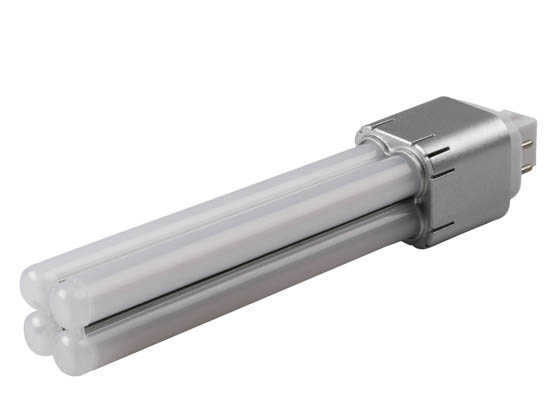

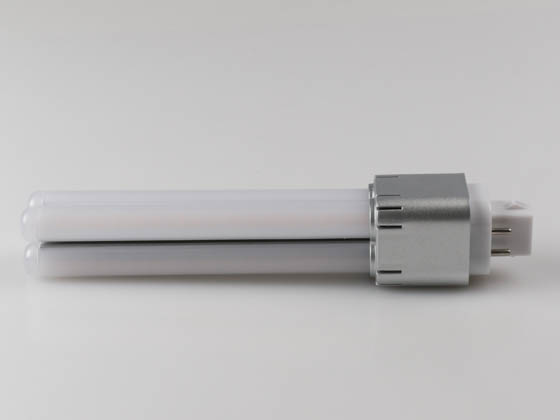

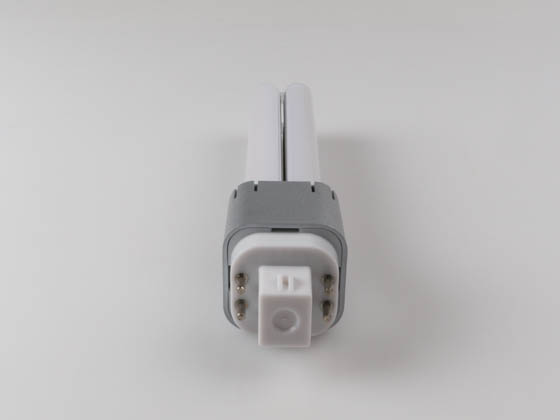

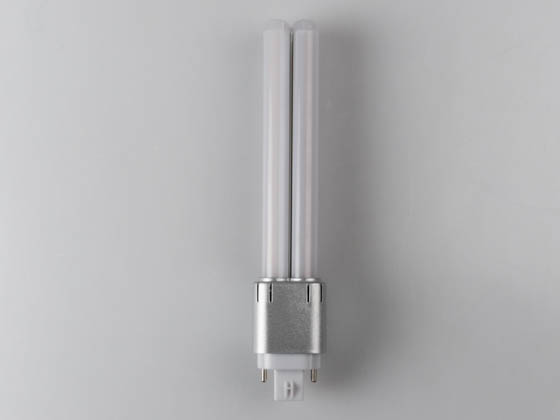

Light Efficient Design created a LED replacement for up to a 32W CFL bulb that uses 10W and looks just like the CFL being replaced. This bulb will work with a 13/18/26/32W electronic ballast or 120-277V line voltage for bypass installation.
- Directly replaces up to a 32W G24q 4 Pin CFL lamp
- Works with an elecronic CFL ballast or can run off of line voltage
- Bypass installation requires rewiring
- Minimum compartment dimensions 3.5" diameter and 7" high
- 120-277 universal voltage
- 360º Omni-Directional Beam Angle
- Suitable for dry and damp locations only
- For use in open fixtures only. Not rated for use in enclosed fixtures.
Installation for plug 'n play application:
- Power off the fixture
- Carefully remove the installed CFL lamp(s)
- Verify CFL ID information for compatibility with the LED lamp
- Insert the LED lamp into all open socket(s) within the fixture
- Turn power on
Electronic ballast compatibility
- Philips Advance ICF-2S26-H1-LD
- Philips Advance ICF-2S18-HA-LD
- Philips Advance REB-S213-M6-EL
- Hatch HC213PS/UV/D
- Hatch HC218PS/UV/D
- Hatch HC218PS/UV/WJ
- Sylvania 2*26CF/UNV DM
- Keystone KTEB-226-UV-PS-DW
- Triad C2642UNVME
- GE GEC218-MVPS-3W
- GE GEC226-MVPS-3W
Note: Other electronic ballasts may not be compatible.
Do not "hot swap" this lamp. Turn off fixture before replacing existing bulb. If the lamp does not light when the luminaire is turned on, remove the lamp from the luminaire. If the lamp or luminaire exhibits undesirable operation (buzzing, flickering, etc.) immediately turn off power and remove lamp.
|Light Efficient Design
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
The total wattage of fluorescent lamps in a fixture that this fixture replaces.
A measure of "electrical pressure" between two points. The voltage specification of an incandescent lamp is the electrical "pressure" required to drive it at its designed point. The "voltage" of a ballast (e.g. 120 V) refers to the line voltage coming from the power source and is connected to the ballast.
The end (or ends) of the lamp that fits into the socket.
The description of the general appearance of a lamp/bulb consists of a letter(s) followed by a number. The letter indicates the shape of the bulb and the number relates to the diameter of the bulb in eighths of an inch. For example, a common household bulb is the A-19. The bulb is "A" shape and the diameter would be nineteen 8ths of an inch, or 2 3/8".
|Twin Tube Alt
The color of the light produced by a bulb
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
|Color Temperature (Kelvin)
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
The surface finish of a bulb, which may affect the quality of the light emitted.
The technology implemented by the bulb, e.g. incandescent, halogen, LED
|Average Rated Life (hr)
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
|Operating Temperature (°F)
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
|0 to 85
|Beam Angle (°)
Beam Angle (°)
The width of a light beam, expressed in degrees. The beam angle is often part of the ordering code for reflector lamps. For example, a 50PAR30/HIR/NFL25 is a 50-watt PAR30 narrow flood lamp with a beam angle of 25 degrees.
|Bulb Power Type
Bulb Power Type
Defines how a lamp is powered, whether it needs a ballast or not, or can use either
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
The angle that the fixture can be mounted at
|Base Up/Base Down/Horizontal
|5 year limited
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
