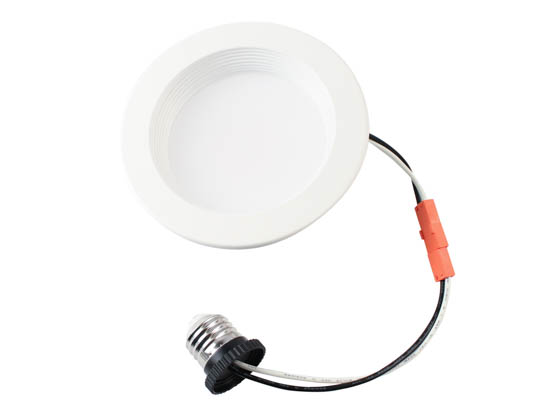

Archipelago 4" LED Downlight 10W and 5-Way Color Selectable TRIAC Dimming 90CRI

SKU: LDRR4-10-S5-B | Ordering Code: LDRR4-10-S5-B

$8.89each
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

Free ground shipping on orders over $99*

Options

Brightness (Lumens)
750 1100
Diameter (in)
5.09 7.32

Product Highlights

  • Estimated life of 45.7 years based on 3 hours use per day
  • Adjustable color
Description
  • ENERGY
    STAR
  • Color
    Selectable

The Archipelago Nebula LDRR Series LED 4" downlight is 10W and 5-way color (2700/3000/3500/4000/5000K) selectable.

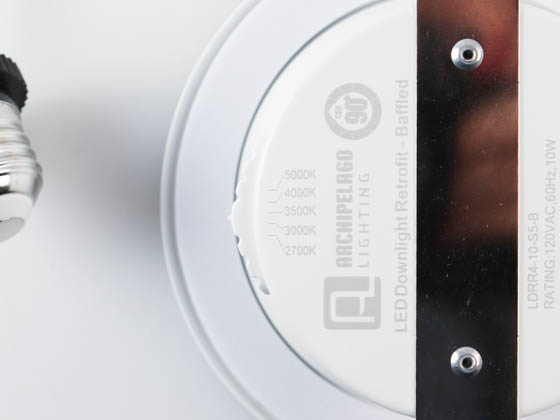

  • 5-way color selectable (2700/3000/3500/4000/5000K)
  • TRIAC dimming
  • Damp location rated
  • 90CRI
  • Durable thermoplastic housing with frosted lens

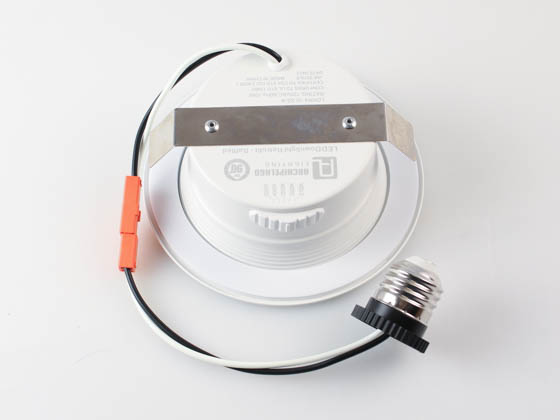

  • Includes quick connect with E26 adapter for retrofit applications
  • Energy star rated
  • JA8 and Title 24 compliant
  • 120V

The Archipelago Nebula Series LED downlights provides exceptional ease of installation, high quality at 90CRI and controllability with 5-way color select.

Product Documents

Full Specs

Brand

Archipelago Lighting

Product Line

Nebula

Model Number

LDRR4-10-S5-B
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
10 Watts

Line Voltage

120
Base
The end (or ends) of the lamp that fits into the socket.
Medium (E26)
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
90
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
2700/3000/3500/4000/5000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
2700
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
750
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
50000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-4 to 105
Beam Angle (°)
The width of a light beam, expressed in degrees. The beam angle is often part of the ordering code for reflector lamps. For example, a 50PAR30/HIR/NFL25 is a 50-watt PAR30 narrow flood lamp with a beam angle of 25 degrees.
100
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
3.11
Diameter (in)
Light bulbs: a measurement of a bulb's width taken at the widest point of the bulb. Fixtures: the measurement across the widest point of a circular fixture.
5.09
Finish
The decorative finish of the item.
White
Installation Type
The way in which a fixture attaches to its relevant surface.
4" Can

Manufacturer Warranty

5 year limited
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes
ENERGY STAR Certified
ENERGY STAR is a program created jointly by the U.S, Environmental Protection Agency and the U.S. Department of Energy to help people save money and protect the environment by using energy-efficient electronics and appliances. ENERGY STAR-certified devices use less energy without compromising functionality.
Yes
ENERGY STAR Number
Number identifying the product in ENERGY STAR certification listing.
2386486
Title 24 Compliant
California Building Energy Efficiency Standards for Residential and Non-Residential Buildings.
Yes
JA8 Compliant
The section in the 2016 California Title 24 that describes the residential lighting requirements.
Yes
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
Yes
