Sorry, this product is not available to purchase.
- Estimated life of 68.5 years based on 3 hours use per day
- Adjustable color
- Adjustable wattage
DLC
Listed
DLC
Premium
Wattage
Selectable
Color
Selectable

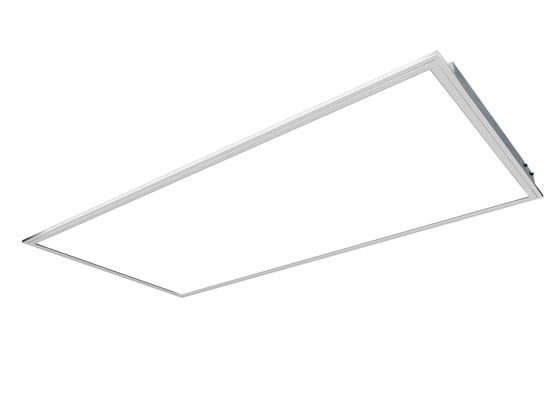

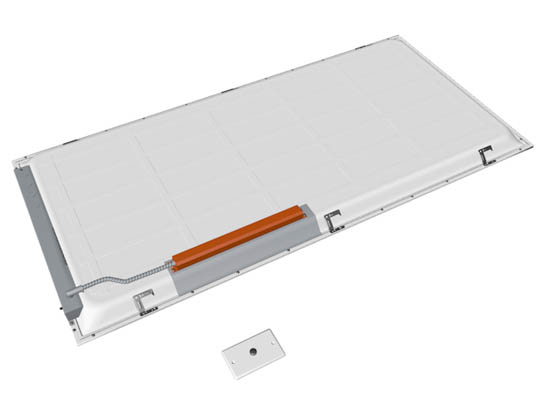

Archipelago ventiARCH Series dimmable, wattage and color selectable, 2x4 ft. LED back lit flat panel fixture has integrated switches to easily change power output and kelvin (CCT). Constructed of rugged cold-rolled steel, post painted with a highly diffused white finish.
Applications - Offices, schools, retail locations and hospitals.
- 5-way power and 4-way kelvin (CCT) switches
- Wattage selectable - 25W, 30W, 35W, 40W, 50W
- Color selectable - 3000K, 3500K, 4000K and 5000K
- Recessed in T-bar grid ceilings with integral earthquake clips for secure attachment
- Rated for IC installations
- White aluminum frame with frosted PMMA lens prevents yellowing
- Slim profile for shallow ceilings
- Excellent color consistency and superior lumen maintenance
- Built-in seismic hooks standard
- 0-10V dimming
Brand | Archipelago Lighting |
Product Line | VentiARCH |
Model Number | LBLP24-V54-EM |
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
| 25/30/35/40/50 Watts |
Fluorescent Equivalent
The total wattage of fluorescent lamps in a fixture that this fixture replaces.
| 59-89 |
Line Voltage | 120-277 |
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
| 80 |
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
| 3000/3500/4000/5000 |
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
| 3000 |
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
| 5000 |
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
| 3250/3900/4500/5200/6500 |
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
| 75000 |
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
| -10 to 125 |
Bulb Type Supplied
Type of bulb supplied with the fixture
| LED |
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
| 48 |
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
| 24 |
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
| 2 |
Finish
The decorative finish of the item.
| White |
Housing | Die-formed one piece |
Warranty | 7 year limited |
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
| Yes |
DLC Listings
Approved by the DesignLights Consortium, a collaboration of utility companies and regional energy efficiency organizations. Approved products meet the consortium's standards for ensuring high-quality, energy-efficient lighting design. There are three categories, Standard, Premium and Horticultural, plus Luna for light-pollution minimization.
| S-DFC2J1 Premium, S-R0SDNV Standard |
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
| Yes |
Battery Backup
Has a backup battery to allow it to continue functioning in case of power failure.
| Yes |
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
| Yes |
Wattage Selectable
Device will work with a range of different wattages.
| Yes |
