LED Linear Tubes

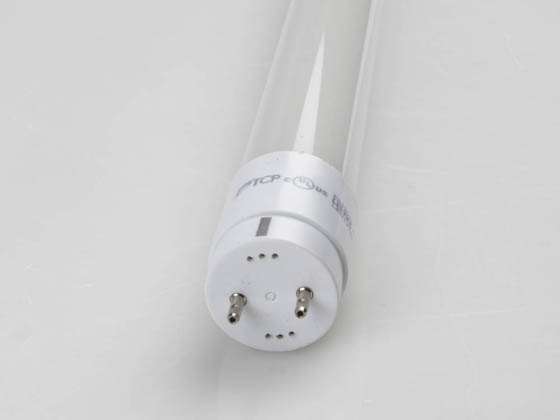

TCP 12W 48" 5000K 90 CRI Glass T8 LED Bulb, Ballast Compatible

SKU: L12T8D5050K95 | Ordering Code: L12T8D5050K95  | UPC: 762148085171

$21.49each
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

On BackorderTypically ships in 5-7 business days
We may already have more on the way or, in most cases, we can ship directly from the manufacturer. Call 888-455-2800 and one of our Lighting Specialists will help to complete your order.

Add 5 to your cart to get free ground shipping *

Options

Bulb Color
Bright White Cool White Neutral White
Color Temperature (Kelvin)
Color Temperature Guide 3500 4100 5000

Product Highlights

  • Estimated life of 45.7 years based on 3 hours use per day
  • No lead or mercury means easy and environmentally safe disposal
Description

Lighting Facts Per Bulb

Brightness 1850 lumens
Estimated Yearly Energy Cost $1.45
Based on 3 hrs/day, 11¢/kWh
Cost depends on rates and use
Life
Based on 3 hrs/day45.7 years
Light Appearance
WarmCool
5000 K
Energy Used12 watts

TCP 12 watt 5000K bright white 90 CRI T8 glass LED lamps are compatible with most instant-start ballasts and many rapid start and programmed start ballasts, eliminating the need to have an electrician rewire the fixture. Simply take out the existing fluorescent T8 lamp and replace with the TCP LED T8 lamp. They are an ideal energy saving choice for existing linear fluorescent fixtures. Suitable for use in fixtures where ambient temperature is between -20°F and 130°F. Can be used in lensed recessed troffers.



  • Use shunted sockets for instant start ballasts and unshunted sockets for rapid start, programmed start
  • 1800 lumens is based on a normal ballast factor
  • Direct replacement for:
    • F32T8 32W
    • F32T8 30W
    • F32T8 28W
    • F32T8 25W
  • Eliminate the need for rewiring and allows the fixture to maintain original UL and CSA compliance
  • Perfect for applications with frequent "on/off" switching cycles, and buildings that desire to be mercury free
  • Power must be turned off to fixture before installing the lamp
  • Instant on, no flicker or buzz
  • Emits virtually no UV rays or IR
  • Suitable for damp locations

Product Documents

Full Specs

Brand

TCP

Product Line

LED DirecT8

Model Number

L12T8D5050K95
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
12 Watts
Volts
A measure of "electrical pressure" between two points. The voltage specification of an incandescent lamp is the electrical "pressure" required to drive it at its designed point. The "voltage" of a ballast (e.g. 120 V) refers to the line voltage coming from the power source and is connected to the ballast.
120-277,347
Base
The end (or ends) of the lamp that fits into the socket.
Medium Bipin
Bulb Shape
The description of the general appearance of a lamp/bulb consists of a letter(s) followed by a number. The letter indicates the shape of the bulb and the number relates to the diameter of the bulb in eighths of an inch. For example, a common household bulb is the A-19. The bulb is "A" shape and the diameter would be nineteen 8ths of an inch, or 2 3/8".
T-8
Bulb Color
The color of the light produced by a bulb
Bright White
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
90
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
1850
Bulb Finish
The surface finish of a bulb, which may affect the quality of the light emitted.
Opaque
Bulb Technology
The technology implemented by the bulb, e.g. incandescent, halogen, LED
LED
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
50000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-20 to 130
Beam Angle (°)
The width of a light beam, expressed in degrees. The beam angle is often part of the ordering code for reflector lamps. For example, a 50PAR30/HIR/NFL25 is a 50-watt PAR30 narrow flood lamp with a beam angle of 25 degrees.
210
Bulb Power Type
Defines how a lamp is powered, whether it needs a ballast or not, or can use either
Ballast Compatible
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
48
Diameter (in)
Light bulbs: a measurement of a bulb's width taken at the widest point of the bulb. Fixtures: the measurement across the widest point of a circular fixture.
1
Socket Type
Type of socket a linear lamp is compatible with, whether shunted, non-shunted or both.
Shunted or Non Shunted

Warranty

5 year limited
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes
Rated for Fully Enclosed Fixtures
Not all LED bulbs are suitable for use in enclosed fixtures, due to the amount of heat they generate. Rated bulbs have been tested and approved as safe for enclosed fixtures.
Yes
