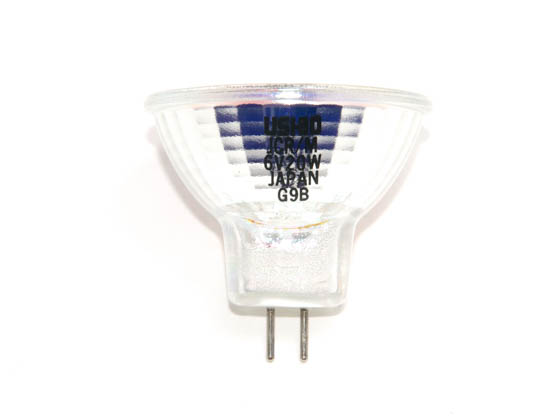

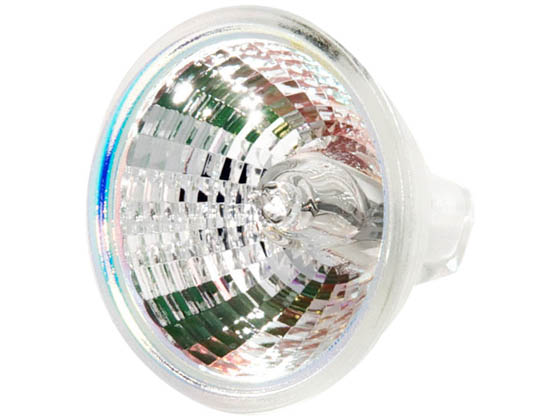

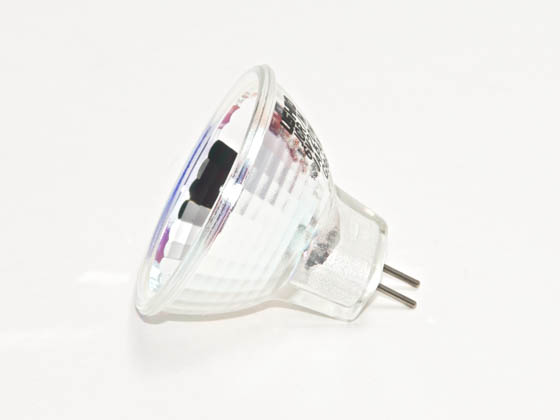

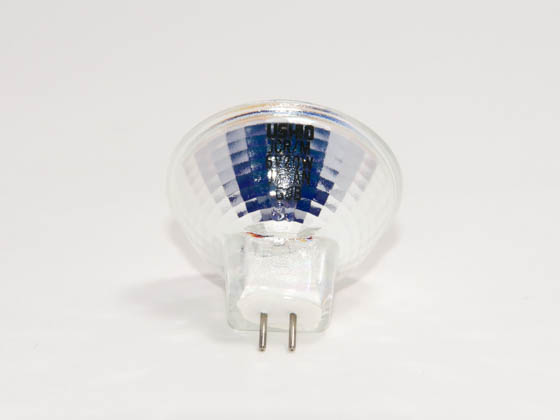

Ushio 20W 6V MR11 Halogen Bulb

SKU: U1000934 | Ordering Code: JCR/M6V-20W  | UPC: 48777161258

Sorry, this product is not available to purchase.
Description
  • Clearance

Ushio brand MR11 halogen flood. 20 Watts for moderate power and light. 6 volts for low voltage systems. Low voltage means a smaller filament, for greater optical control.

  • Halogen lights provide brighter, whiter light than incandescents, while maintaining outstanding color rendering

  • Flood means 20º beam spread and a narrower beam of light. Lamp can be farther away and still light the area effectively

  • Dichroic reflector reflects visible light out the front while letting heat escape out the back, resulting in a cool beam of light

NOT for general purpose lighting.  Filament design provides extremely high intensity, very bright white light, rated for 50 hours life.  Often used in photopraphic applications.

Full Specs

Brand

Ushio

Model Number

JCR/M6V-20W
Energy Used

Energy Used

A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.

20 Watts
Volts

Volts

A measure of "electrical pressure" between two points. The voltage specification of an incandescent lamp is the electrical "pressure" required to drive it at its designed point. The "voltage" of a ballast (e.g. 120 V) refers to the line voltage coming from the power source and is connected to the ballast.

6
Base

Base

The end (or ends) of the lamp that fits into the socket.

GZ4
Bulb Shape

Bulb Shape

The description of the general appearance of a lamp/bulb consists of a letter(s) followed by a number. The letter indicates the shape of the bulb and the number relates to the diameter of the bulb in eighths of an inch. For example, a common household bulb is the A-19. The bulb is "A" shape and the diameter would be nineteen 8ths of an inch, or 2 3/8".

MR-11
Bulb Color

Bulb Color

The color of the light produced by a bulb

Soft White
Color Temperature (Kelvin)

Color Temperature (Kelvin)

An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).

3200
Candle Power

Candle Power

A measure of how much light the bulb produces, measured at the bulb, based on the amount originally emitted by a single candle.

1800
Bulb Finish

Bulb Finish

The surface finish of a bulb, which may affect the quality of the light emitted.

Clear
Bulb Technology

Bulb Technology

The technology implemented by the bulb, e.g. incandescent, halogen, LED

Halogen
Average Rated Life (hr)

Average Rated Life (hr)

A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.

50
Beam Angle (°)

Beam Angle (°)

The width of a light beam, expressed in degrees. The beam angle is often part of the ordering code for reflector lamps. For example, a 50PAR30/HIR/NFL25 is a 50-watt PAR30 narrow flood lamp with a beam angle of 25 degrees.

20
Class and Filament

Class and Filament

A designation used to describe the shape or structure of the filament in an incandescent or halogen light bulb. Most commonly used for specialty products like rough service and antique replica lamps.

C-6
Length (in)

Length (in)

Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.

1.31
Diameter (in)

Diameter (in)

Light bulbs: a measurement of a bulb's width taken at the widest point of the bulb. Fixtures: the measurement across the widest point of a circular fixture.

1.41
Dimmable

Dimmable

Indicates whether a bulb can be dimmed in conjunction with a suitable dimmer control.

Yes
GE

GE

A General Electric brand-specific product number for an equivalent item and is provided for the purpose of cross-referencing.

JCR/M6V20W
Osram Sylvania

Osram Sylvania

An Osram Sylvania brand-specific product number for an equivalent item and is provided for the purpose of cross-referencing.

JCR/M6V20W
