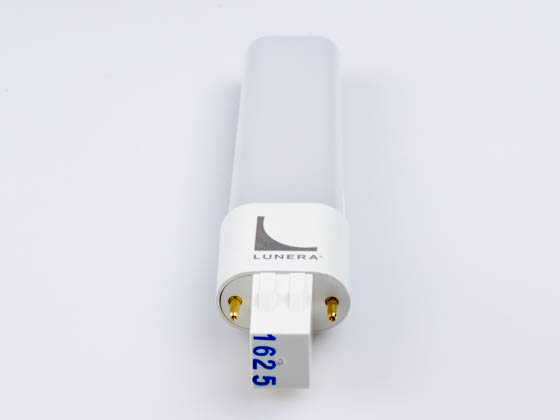

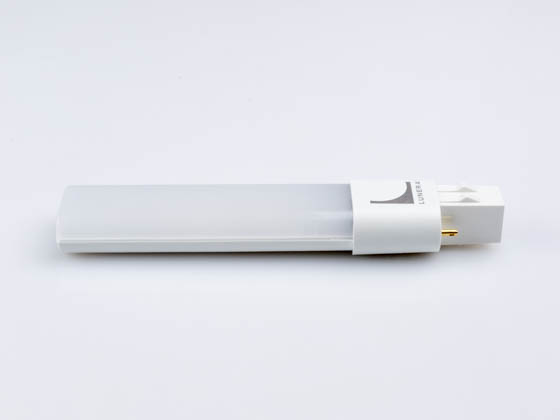

Lunera 5W 2 Pin Horizontal 3500K GX23 Hybrid LED Bulb

SKU: 930-00122 | Ordering Code: HN-H-GX23-U-5W-835-G4  | UPC: 815975020103

Sorry, this product is not available to purchase.

Options

Bulb Color
Cool White

Product Highlights

  • Estimated life of 45.7 years based on 3 hours use per day
  • No lead or mercury means easy and environmentally safe disposal
Description

Lighting Facts Per Bulb

Brightness 575 lumens
Estimated Yearly Energy Cost $0.6
Based on 3 hrs/day, 11¢/kWh
Cost depends on rates and use
Life
Based on 3 hrs/day45.7 years
Light Appearance
WarmCool
3500 K
Energy Used5 watts
  • Clearance

The horizontal mounted dimmable lamp from Lunera Lighting is a hybrid LED replacement for CFL downlights that supports both plug and play or ballast bypass operation. Lamp can be driven by a magnetic GX23 ballast or the ballast can be bypassed and line driven by 100-305V. Simply take out the existing CFL lamp and replace with this lamp to use as plug and play or, remove the existing ballast and connect to line voltage. -40°F to 100°F ambient temperature. Use in dry or damp locations only. LDL and UL Listed

Installation:

  • Power off the fixture
  • Carefully remove the installed CFL lamp(s)
  • Verify CFL ID information for compatibility with this lamp
  • Insert the lamp into all open socket(s) within the fixture
  • Turn power on

DO NOT "hot swap" this lamp.  Turn off fixture before replacing existing bulb. This lamp only operates on magnetic ballasts. If the lamp does not light when the luminaire is turned on, remove the lamp from the luminaire. If the lamp or luminaire exhibits undesirable operation (buzzing, flickering, etc.) immediately turn off power and remove lamp.

Full Specs

Brand

Lunera Lighting

Model Number

HN-H-GX23-U-5W-835-G4

Energy Used

A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.

Energy Used
5 Watts

Fluorescent Equivalent

The total wattage of fluorescent lamps in a fixture that this fixture replaces.

Fluorescent Equivalent
13

Volts

A measure of "electrical pressure" between two points. The voltage specification of an incandescent lamp is the electrical "pressure" required to drive it at its designed point. The "voltage" of a ballast (e.g. 120 V) refers to the line voltage coming from the power source and is connected to the ballast.

Volts
100-305

Base

The end (or ends) of the lamp that fits into the socket.

Base
GX23

Bulb Shape

The description of the general appearance of a lamp/bulb consists of a letter(s) followed by a number. The letter indicates the shape of the bulb and the number relates to the diameter of the bulb in eighths of an inch. For example, a common household bulb is the A-19. The bulb is "A" shape and the diameter would be nineteen 8ths of an inch, or 2 3/8".

Bulb Shape
Twin Tube Alt

Bulb Color

The color of the light produced by a bulb

Bulb Color
Neutral White

CRI

Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.

CRI
84

Color Temperature (Kelvin)

An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).

Color Temperature (Kelvin)
3500

Brightness (Lumens)

A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.

Brightness (Lumens)
575

Bulb Finish

The surface finish of a bulb, which may affect the quality of the light emitted.

Bulb Finish
Frosted

Bulb Technology

The technology implemented by the bulb, e.g. incandescent, halogen, LED

Bulb Technology
LED

Average Rated Life (hr)

A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.

Average Rated Life (hr)
50000

Operating Temperature (°F)

The ambient temperature in which the product can safely operate.

Operating Temperature (°F)
-40 to 100

Bulb Power Type

Defines how a lamp is powered, whether it needs a ballast or not, or can use either

Bulb Power Type
Hybrid

Length (in)

Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.

Length (in)
6

Width (in)

For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.

Width (in)
1.3

Mounting

Horizontal

Warranty

5 year limited
