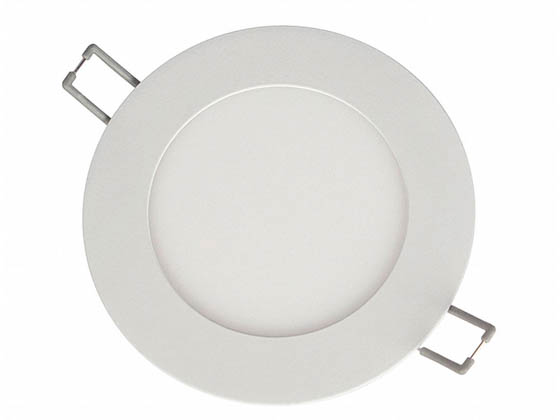

Lightolier Dimmable 11 Watt 90 CRI 4" Round 2700K/3000K/4000K/5000K Flat LED Downlight, JA8 Compliant

SKU: FD4R4CCT | Ordering Code: FD4R4CCT  | UPC: 912401510528

$17.69each
Fixture
Add to Cart
Save to BulbTrack ?

My BulbTrack

Finding the lighting solutions you need might be simple at Bulbs.com, but buying them is even easier. Thanks to our exclusive BulbTrack feature, you can quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page. Products are added to your My BulbTrack page when you check out from your shopping cart or add them from the product description pages.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home. Make buying your replacement lighting as simple as it should be. Create your BulbTrack today!


In StockReady to ship

Order within the next 8 hours 40 minutes to ship today

Add 6 to your cart to get free ground shipping *

Options

Diameter (in)
4.75 6.6

Product Highlights

  • Energy efficient replacement for a conventional 65 watt bulb
  • Estimated life of 45.7 years based on 3 hours use per day
  • Adjustable color
Description
  • ENERGY
    STAR
  • Color
    Adjustable

Lightolier low-profile 90 CRI Flat LED Downlight provides an easy and quick downlight solution without the traditional frame and reflector. Fixture has two spring clips for easy mounting without the need for a recessed can or J-box. When installed the fixture reveals only 1/8" below the ceiling. Clip attached on the side of the J-box to connect with the fixture or new construction plate to meet NEC (National Electric Code). J-box also has key holes on the side for mounting on joist, or can lay on ceiling tile, depending on local building codes. Please consult a licensed electrician for proper placement of the J-box.

Ideal for installation in low plenum and existing shallow space ceilings.

  • The kelvin selector feature makes it easy to choose color at the time of installation
  • Ceiling cutout 4 1/3" diameter
  • Aluminum alloy flange - Powder coated white
  • Lens - Diffuser is used for smooth and diffused light pattern
  • Locking power connection is used to connect J-box and fixture. Standard length of the connection is 11.8"
  • Foam gasket supplied with fixture
  • Fixture can be through wired
  • Junction box is steel, 1.25" H x 3.5" W, with knockouts
  • T24/JA8 compliant and Energy Star
  • Compatible with Lutron DVELV-300P dimmer
  • IC rated for direct contact with thermal insulation
  • Air seal for minimal air leakage
Full Specs

Brand

Lightolier

Model Number

FD4R4CCT
Energy Used

Energy Used

A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.

11 Watts
Incandescent/Halogen Equivalent

Incandescent/Halogen Equivalent

The wattage value of an incandescent or halogen lamp of similar brightness.

65 Watts

Line Voltage

120
Base

Base

The end (or ends) of the lamp that fits into the socket.

Wired
CRI

CRI

Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.

90
Color Temperature (Kelvin)

Color Temperature (Kelvin)

An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).

2700/3000/4000/5000
Lowest Color Temperature (Kelvin)

Lowest Color Temperature (Kelvin)

The warmest color temperature that can be set for a color-tuneable product.

2700
Highest Color Temperature (Kelvin)

Highest Color Temperature (Kelvin)

The coolest color temperature that can be set for a color-tuneable product.

5000
Brightness (Lumens)

Brightness (Lumens)

A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.

700
Average Rated Life (hr)

Average Rated Life (hr)

A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.

50000
Beam Angle (°)

Beam Angle (°)

The width of a light beam, expressed in degrees. The beam angle is often part of the ordering code for reflector lamps. For example, a 50PAR30/HIR/NFL25 is a 50-watt PAR30 narrow flood lamp with a beam angle of 25 degrees.

113
Bulb Type Supplied

Bulb Type Supplied

Type of bulb supplied with the fixture

LED
Height (in)

Height (in)

For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.

0.13
Diameter (in)

Diameter (in)

Light bulbs: a measurement of a bulb's width taken at the widest point of the bulb. Fixtures: the measurement across the widest point of a circular fixture.

4.75
Finish

Finish

The decorative finish of the item.

White

Mounting

4" Hole
Installation Type

Installation Type

The way in which a fixture attaches to its relevant surface.

4" Hole

Warranty

5 year limited
Wet Location

Wet Location

Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.

Yes
ENERGY STAR Certified

ENERGY STAR Certified

ENERGY STAR is a program created jointly by the U.S, Environmental Protection Agency and the U.S. Department of Energy to help people save money and protect the environment by using energy-efficient electronics and appliances. ENERGY STAR-certified devices use less energy without compromising functionality.

Yes
ENERGY STAR Number

ENERGY STAR Number

Number identifying the product in ENERGY STAR certification listing.

2358679
Title 24 Compliant

Title 24 Compliant

California Building Energy Efficiency Standards for Residential and Non-Residential Buildings.

Yes
JA8 Compliant

JA8 Compliant

The section in the 2016 California Title 24 that describes the residential lighting requirements.

Yes
Dimmable

Dimmable

Indicates whether a bulb can be dimmed in conjunction with a suitable dimmer control.

Yes
Color Selectable

Color Selectable

Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.

Yes
