- Estimated life of 68.5 years based on 3 hours use per day
Product Description–
Lighting Facts Per Bulb |
| Brightness 23400 lumens |
|
Estimated Yearly Energy Cost $32.52
Based on 3 hrs/day, 11¢/kWh
Cost depends on rates and use
|
|
Life
Based on 3 hrs/day68.5 years
|
|
Light Appearance
WarmCool
5000 K
|
| Energy Used270 watts |

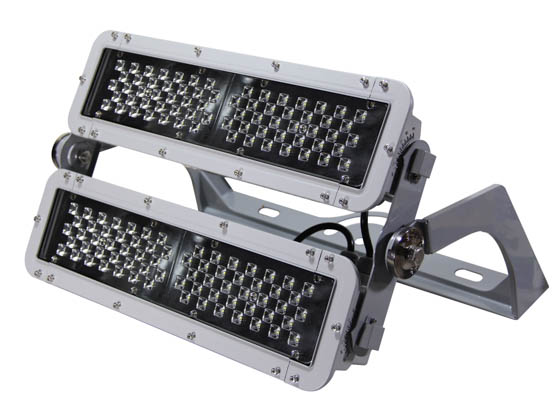

MaxLite 270 Watt High Output LED Flood Light Fixture is equivalent to a 720-800 watt high pressure sodium/metal halide fixture. Ideal for car dealerships, youth sports parks, golf driving ranges, facades and general area illumination. It's comprised of self-contained modular elements, variability in both lumen output and optics capabilities. Can be specified in either one, two or three 135 watt module configurations where each module can have one of three available optical distributions.
- 347-480V option available. Call for details
- IP65 rated unit with IP67 rated connections
- Discreet J-Box on each frame enables easy field install
- Die cast aluminum body with heat sinking across the full module, enabling a long fixture life
- Gray powder coat paint for durable finish
- Stainless steel bushing and adjustment plates
- Tempered glass lens
- Polished and plated optical reflectors
- 6'-18/3 shielded power feed cord included
- Trunnion mounted to carriage with 270 degree pivoting bolt pattern
- Compatible with dusk-to-dawn photocells and motion sensors
- DLC Listed
Full Specs–
Brand | MaxLite |
Model Number | ELLF270UW50 |
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
| 270 Watts |
Line Voltage | 120-277 |
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
| 70 |
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
| 5000 |
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
| 23400 |
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
| 75000 |
Beam Angle (°)
The width of a light beam, expressed in degrees. The beam angle is often part of the ordering code for reflector lamps. For example, a 50PAR30/HIR/NFL25 is a 50-watt PAR30 narrow flood lamp with a beam angle of 25 degrees.
| 120 |
Bulb Type Supplied
Type of bulb supplied with the fixture
| LED |
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
| 21.4 |
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
| 13.7 |
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
| 14.5 |
Finish
The decorative finish of the item.
| Gray powder coat paint |
Housing | Die cast aluminum |
Mounting | Trunnion mounted to carriage with 270 degree pivoting bolt pattern |
Manufacturer Warranty | 5 years limited |
Wet Location
Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.
| Yes |
