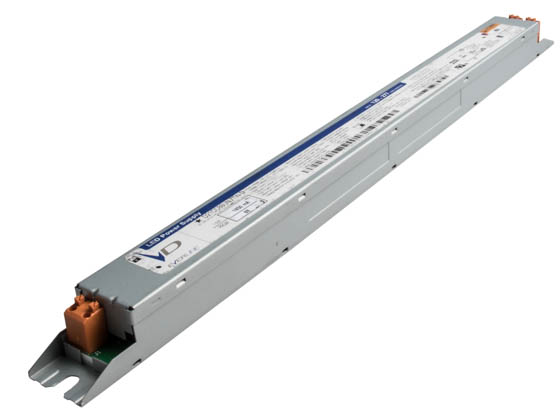

Everline D21CC80UNVTW-D185I constant current LED driver is ideal for maximum energy savings and control applications. This 0-10V dimmable driver is ideal for constant power tuning applications.
Constant current drivers typically provide constant current to an LED module within a specific voltage range.
- 0-10V dimming
- Input voltage 120-277V
- Input Current Max. - 0.77/120V; 0.33/277V
- Input Power Max. - 93W
- Input Frequency - 50-60 Hz
- Power Factor - > 0.95
- THD Max. - <20%
- Output Voltage - 17V to 38V @2.1Amps; 17V to 56V @ 1.4Amps
- Output Current Ripple - <10%
- Output Power - 80 watts
- UL dry & damp listed
A measure of electrical potential, expressed in volts. Voltage "force" is the measurement of pressure that pushes electrical current through a conductor.
The transformed power output from a transformer.
|Operating Temperature (°F)
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
|-40 to 140
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
|Total Harmonic Distortion (THD)
Total Harmonic Distortion (THD)
Total harmonic distortion, or THD, is the measure of how much a ballast can distort the waveform of that building’s power supply and interfere with other equipment. Electronic ballasts today are rated at less than 20 percent, 15 percent, or less than 10 percent THD. The magnetic ballast is rated in the 20 to 28 percent range. The lower the THD the better and more efficient the ballast, and the less likely it is to interfere with other electronic equipment.
|5 year limited
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
