Undercabinet Light Fixtures

TCP Dimmable 36" 12 Watt White Color Selectable (3000K/4000K/5000K) LED Undercabinet Light Fixture, Power Cord Included

SKU: CAB36UCCT | Ordering Code: CAB36UCCT  | UPC: 762148321347

$52.39each
Fixture
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

Add 2 to your cart to get free ground shipping *

Options

Length (in)
14.1 22.4 34.5

Product Highlights

  • Estimated life of 45.7 years based on 3 hours use per day

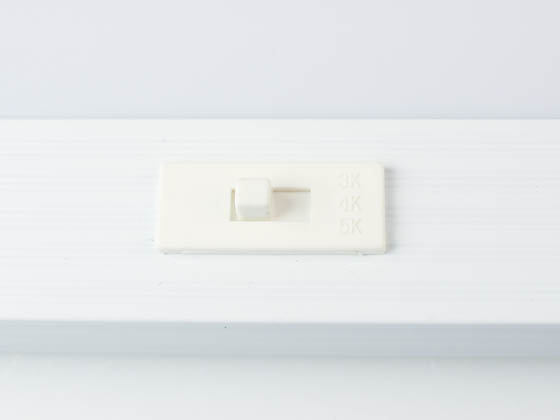

  • Adjustable color
Description
  • Color
    Selectable

TCP dimmable 36" 12 watt white LED undercabinet fixture is color selectable (3000K/4000K/5000K). Provides task or accent lighting in commercial, retail, hospitality and residential applications. Ideal for use under and over cabinets, display cases, task lighting, office lighting, coves and more.

Includes 5' power cord, 10" connector cable , small connectors and screws.

  • Linkable design
  • 0.8mm aluminum housing for excellent heat dissipation
  • ETL approved for damp locations
  • New design eliminates hot spots for uniform brightness without pixilation
  • Frosted acrylic lens diffuses light evenly over the work area
  • Dimmable with Triac dimmers, such as Lutron CTCL-153P and MACL-153M

Product Documents

Full Specs

Brand

TCP

Model Number

CAB36UCCT
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
12 Watts

Line Voltage

120
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
80
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
3000/4000/5000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
3000
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
1260
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
50000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
5 to 104
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
34.5
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
2.6
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
0.7
Finish
The decorative finish of the item.
White

Housing

Aluminum

Mounting

Mount to underside of shelf or cabinet at leading edge

Warranty

5 year limited

Linkable

Yes
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
Yes
