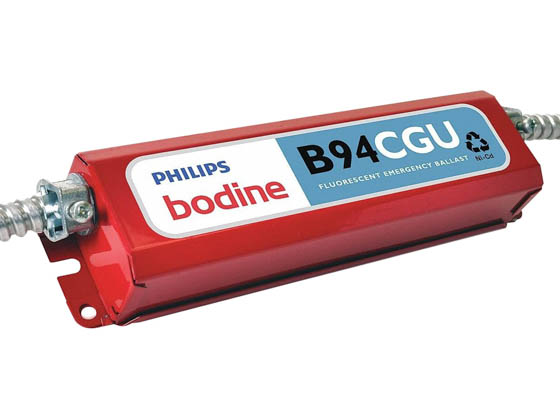

Philips Bodine B94 CFL Emergency Battery Backup 1 Lamp 13-42W 300-750 Lumens

SKU: B94CGUM | Ordering Code: B94CGUM

$129.99each
Ballast
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

On BackorderTypically ships in 3-5 business days
We may already have more on the way or, in most cases, we can ship directly from the manufacturer. Call 888-455-2800 and one of our Lighting Specialists will help to complete your order.

Add 2 to your cart to get free ground shipping *

Product Highlights

  • Ignites one PLC/PLT/PLL/4-PIN lamp

Product Description–

The B94xxx emergency ballast works in conjunction with an AC ballast to convert new or existing fluorescent fixtures into emergency lighting. The emergency ballast consists of a high-temperature nickel-cadmium battery, charger and electronic circuitry in one compact case. The B94xxx can be used with one 18-42 W (4-pin) twin, quad or triple twin-tube compact. It is also compatible with most one, two, three and four-lamp electronic, standard, energy-saving and dimming AC ballasts. If used in an emergency-only fixture, no AC ballast is necessary. The B94xxx is suitable for indoor and damp locations. It is not suitable for air handling heated air outlets or wet or hazardous locations.

  • Can be used with most 13-42 watt CFL lamps without integral starters
  • Can be used with either switched or unswitched fixtures
  • Produces 300 to 750 lumens of initial emergency light output, depending on the wattage and type of lamp
  • Suitable for indoor and damp locations
  • Battery
    • High temperature maintenance free
    • Nickel-Cadmium
    • 7-10 year life expectancy
  • Recharge time - 24 hours
  • Ambient temperature 32ºF - 122ºF
  • Two-wire illuminated test switch
  • AC input current - 50mA
  • Illumination time - 90 minutes

B94 Lamp Compatibility:

  • Single lamp PL-T 18-42W
  • Single lamp PL-C 13-26W
  • Single lamp PL-L 18-40W
  • Single lamp F382D/4P

Product Documents

Full Specs–

Brand

Bodine

Product Line

Philips Bodine

Model Number

B94CGUM

Input Volts

120-277
Initial Lumen Output
The lumen output at first start-up.
300-750

Number of Lamps

1
Ballast Type
Magnetic ballasts are a legacy technology and use inductance to transform the line voltage to the voltage required to "fire" or excite the gasses in a lamp. Electronic ballasts use a variety of starting methods, and are more efficient than magnetic ballasts in converting input power to the proper lamp power and operate fluorescent lamps at higher frequencies, resulting in an overall lamp-ballast system – increasing efficacy 15% to 20% over a magnetic equivalent.
Electronic
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
9.4
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
2.4
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
1.5

Lamps by Wattage

1x13W, 1x18W, 1x24W, 1x26W, 1x32W, 1x36W, 1x40W, 1x42W

Manufacturer Warranty

5 year limited
Ballast Lamp Type
The type of bulb the ballast can fire.
PLC/PLT/PLL/4-PIN
AC Input (Watts)
The amount of watts to operate emergency lamps.
4
Test Button
Features a button for testing the alarm.
Yes
