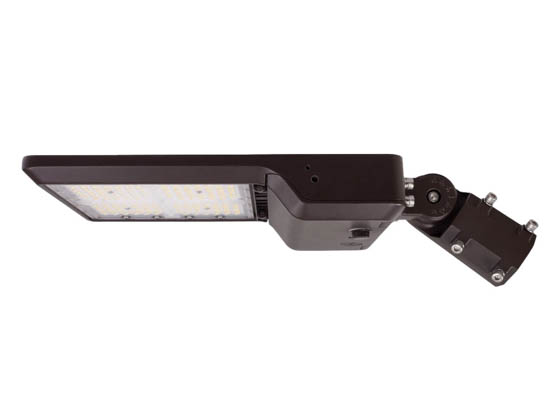

Maxlite Slim LED Area Fixture Wattage (200/240/300W) and Color Selectable With Slipfitter Mount Type III C-Max Control Compatible

SKU: 109642 | Ordering Code: AE300UT3-WCSBKCR  | UPC: 767627043345

$409.99each
Fixture
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

Ships from SupplierUsually ships in 2-3 business days.

This item does not ship outside the US

This item qualifies for free ground shipping *

Options

Brightness (Lumens)
7808 10410 13012 14258 17282 21603 26639 32290 40362
Mounting
Arm Slipfitter

Product Highlights

  • Energy efficient replacement for a 750/1000 watt HID bulb
  • Estimated life of 91.3 years based on 3 hours use per day
  • Adjustable color
  • Adjustable wattage
Description
  • DLC
    Premium
  • Wattage
    Selectable
  • Color
    Selectable

Maxlite dimmable wattage selectable (200W/240W/300W) and color selectable (3000K/4000K/5000K) Slim LED Area Light fixture with slipfitter mount is equivalent up to a 1000 watt metal halide fixture. Use the available USB-C port to install a C-Max control node for automatic dusk to dawn or motion sensing/dusk to dawn operation.

Ideal for parking lots, streets and walkways.

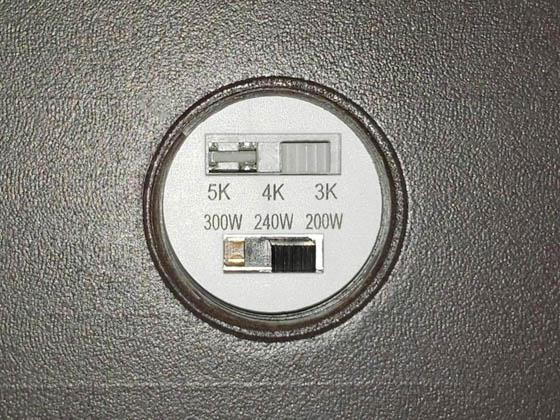

  • 3-Way Wattage and Color Selectable
    • Wattage Selectable (200W/240W/300W)
    • Color Selectable (3000K/4000K/5000K)
  • C-Max Control Ready
    • Basic C-Max Remote Control
      • CN-RDMSB (PIR motion and photocell sensor programmable with remote control CN-REMOTE)
      • CN-RDPCB (Photocell sensor programmable with remote control CN-REMOTE)
      • CN-REMOTE (Remote Control for programming CN-RDMSB and CN-RDPCB)
    • C-Max Network APP Control
      • NN-RDMPBXR (C-Max Network controlled APP PIR motion and photocell sensor)
      • NN-RDB (C-Max Network controlled APP ON/Off and scheduling)
  • Includes a slipfitter mount
  • 10kV surge suppression standard
  • Meets ANSI 3G vibration standard for bridges and overpasses
  • Two 40" SO cords included
  • Type III light distribution - Ideal for poles on the side of an area, allowing the light to project outward
  • IP65 rated
  • Polycarbonate lens
  • Universal 120-277V dimming standard
  • DLC listed and JA8 compliant
  • The 19.6" depth includes the slipfitter mount. The 3.3" height is the height of the slipfitter mount
  • 10 year limited warranty with labor allowance

Product Documents

Full Specs

Brand

MaxLite

Product Line

C-Max

Model Number

AE300UT3-WCSBKCR
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
200/240/300 Watts
HID Equivalent
The wattage value of a High Intensity Discharge (HID) bulb of similar brightness.
750/1000

Line Voltage

120-277
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
80
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
3000/4000/5000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
3000
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
26639/32290/40362
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
100000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-40 to 104
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
13.1
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
3.3
Depth (in)
For fixtures and ballasts, depth is the measurement of total distance from front to back of the product in inches.
25.7
Finish
The decorative finish of the item.
Bronze

Housing

Aluminum die cast housing

Mounting

Slipfitter

Warranty

10 year limited
Wet Location
Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.
Yes
JA8 Compliant
The section in the 2016 California Title 24 that describes the residential lighting requirements.
Yes
DLC Listing
Approved by the DesignLights Consortium, a collaboration of utility companies and regional energy efficiency organizations. Approved products meet the consortium's standards for ensuring high-quality, energy-efficient lighting design. There are three categories, Standard, Premium and Horticultural, plus Luna for light-pollution minimization.
S-ZGDN26 Premium
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
Yes
Wattage Selectable
Device will work with a range of different wattages.
Yes
Controls Ready
Indicates whether a fixture is capable of taking an integrated motion or light control, although the control is not included in the product itself.
Yes
