Parking and Area Lights

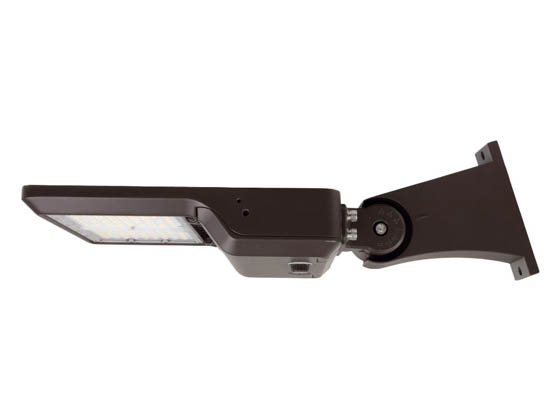

Maxlite Slim LED Area Fixture With Flexible Arm, Dimmable, Wattage & Color Selectable, Type III, C-Max Compatible, 250 Watt HID Equivalent

SKU: 109635 | Ordering Code: AE100UT3-WCSBFCR  | UPC: 767627043277

$232.79each
Fixture
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

Ships from SupplierUsually ships in 2-3 business days.

This item does not ship outside the US

This item qualifies for free ground shipping *

Options

Mounting
Arm Slipfitter
Brightness (Lumens)
7808 10410 13012 14258 17282 21603 26639 32290 40362

Product Highlights

  • Energy efficient replacement for a 175/250 watt HID bulb
  • Estimated life of 91.3 years based on 3 hours use per day
  • Adjustable color
  • Adjustable wattage
Description
  • DLC
    Premium
  • Wattage
    Selectable
  • Color
    Selectable

Maxlite dimmable wattage selectable (60W/80W/100W) and color selectable (3000K/4000K/5000K) Slim LED Area Light fixture with flexible arm is equivalent up to a 250 watt metal halide fixture. Use the available USB-C port to install a C-Max control node for automatic dusk to dawn or motion sensing/dusk to dawn operation. Constructed with a durable die-cast aluminum housing with excellent thermal design.

Ideal for parking lots, streets and walkways.

  • Controls ready - Can be paired with Maxlite's C-Max control node # 105566 for motion sensing/photocell or # 105569 for photocell
  • Includes a flexible arm mount that fits both square or round poles
  • 10kV surge suppression standard
  • Meets ANSI 3G vibration standard for bridges and overpasses
  • Two 40" SO cords included
  • Type III light distribution - Ideal for poles on the side of an area, allowing the light to project outward
  • IP65 rated
  • Polycarbonate lens
  • Universal 120-277V dimming standard
  • DLC listed and JA8 compliant
  • The 20.8" depth includes the flexible arm mount. The 6.3" height is the height of the flexible arm mount
  • 10 year limited warranty with labor allowance
    • Product must be rated for the application; operated ≤ 16 hours per day; in ambient -29°F to 104°F
    • Labor Allowance - Up to $25 per unit; labor allowance up to $500 per unit available for an additional purchase. Contact a Bulbs.com Lighting Specialist for details
    • It is not a requirement to register the warranty to receive warranty coverage, but you must register the warranty if you want to be eligible to receive the labor allowance associated with the 10 year limited warranty

Product Documents

Full Specs

Brand

MaxLite

Product Line

C-Max

Model Number

AE100UT3-WCSBFCR
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
60/80/100 Watts
HID Equivalent
The wattage value of a High Intensity Discharge (HID) bulb of similar brightness.
175/250

Line Voltage

120-277
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
80
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
3000/4000/5000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
3000
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
7808/10410/13012
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
100000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-40 to 104
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
10.4
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
6.3
Depth (in)
For fixtures and ballasts, depth is the measurement of total distance from front to back of the product in inches.
20.8
Finish
The decorative finish of the item.
Bronze

Housing

Aluminum die cast housing

Mounting

Arm

Warranty

10 year limited
Wet Location
Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.
Yes
JA8 Compliant
The section in the 2016 California Title 24 that describes the residential lighting requirements.
Yes
DLC Listing
Approved by the DesignLights Consortium, a collaboration of utility companies and regional energy efficiency organizations. Approved products meet the consortium's standards for ensuring high-quality, energy-efficient lighting design. There are three categories, Standard, Premium and Horticultural, plus Luna for light-pollution minimization.
Premium
DLC Code
Code identifying the product in DLC (DesignLights Consortium) listings.
S-SBV0X9
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
Yes
Wattage Selectable
Device will work with a range of different wattages.
Yes
