- Estimated life of 45.7 years based on 3 hours use per day
Subtotal: $458.88
Add 3 Items to Cart
Product Description–
Lighting Facts Per Bulb |
| Brightness 4200 lumens |
|
Estimated Yearly Energy Cost $4.82
Based on 3 hrs/day, 11¢/kWh
Cost depends on rates and use
|
|
Life
Based on 3 hrs/day45.7 years
|
|
Light Appearance
WarmCool
3500 K
|
| Energy Used40 watts |

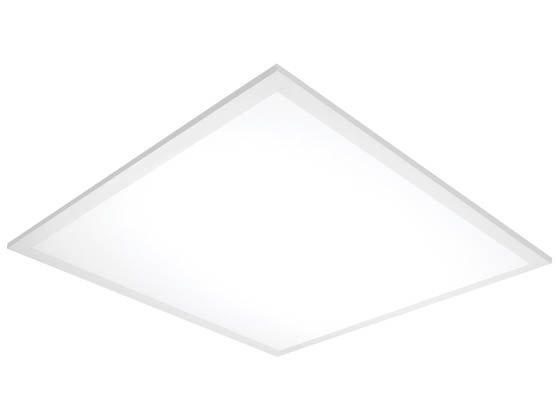

Nuvo Lighting Flat Panel LED fixture features a slim, low-profile design that are ideal for drop ceilings in offices, schools, retail and healthcare applications. The flat panels are fully dimmable. The design of the panels produces an even, consistent shadowless light.
- Long 50,000 hour rated life
- Fits standard T-bar and narrow grid drop ceilings
- Innovative edge lit technology
- Delivers full panel diffusion and superior uniformity
- Slim, low-profile design
- Compatible with Lutron DVSTV-WH and NTSTV-DV-WH dimmers
- Housing - Metal back panel and wiring compartment
- Frame - Aluminum post painted white
- Lens - Frosted white diffuser
Full Specs–
Brand | Nuvo Lighting |
Model Number | LED Flat Panel Fixture 40W 2ft.x2ft. 3500K 120-347V 2-Pack |
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
| 40 Watts |
Fluorescent Equivalent
The total wattage of fluorescent lamps in a fixture that this fixture replaces.
| 68 |
Line Voltage | 120-347 |
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
| 80 |
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
| 3500 |
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
| 4200 |
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
| 50000 |
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
| -4 to 104 |
Bulb Type Supplied
Type of bulb supplied with the fixture
| LED |
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
| 24 |
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
| 24 |
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
| 1.8 |
Nominal Length (ft)
The length to the nearest foot (or half foot in particular cases) that linear bulbs or fixtures will fit.
| 2 |
Nominal Width (ft)
The width to the nearest foot that fixtures will fit.
| 2 |
Finish
The decorative finish of the item.
| White |
Housing | Metal back panel |
Manufacturer Warranty | 5 year limited |
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
| Yes |
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
| Yes |
DLC Listing | PLN90B4KGQUR Standard |
