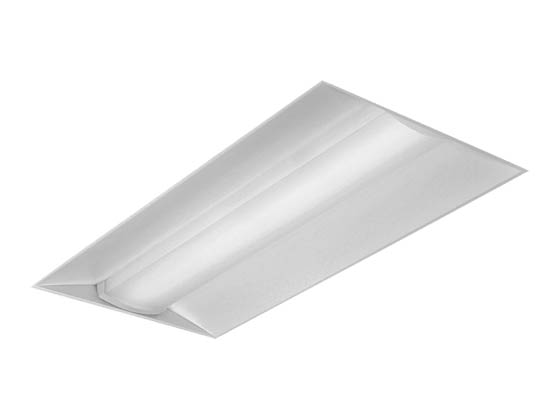

Day-Brite EvoGrid 48 Watt 2x4 ft Dimmable LED Recessed Troffer, 4000K with Emergency Battery Backup

SKU: 2EVG48L840-4-D-UNV-DIM-EMLED | Ordering Code: 2EVG48L840-4-D-UNV-DIM-EMLED  | UPC: 784197049355

$389.79each
Fixture
Add to Cart
Save to BulbTrack ?

My BulbTrack

Finding the lighting solutions you need might be simple at Bulbs.com, but buying them is even easier. Thanks to our exclusive BulbTrack feature, you can quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page. Products are added to your My BulbTrack page when you check out from your shopping cart or add them from the product description pages.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home. Make buying your replacement lighting as simple as it should be. Create your BulbTrack today!


Ships from SupplierUsually ships in 10-15 business days.

This item does not ship outside the US

This item qualifies for free ground shipping *

Options

Brightness (Lumens)
4800 5400
Color Temperature (Kelvin)
Color Temperature Guide 3500 4000

Product Highlights

  • Estimated life of 45.7 years based on 3 hours use per day
Description

Lighting Facts Per Bulb

Brightness 4800 lumens
Estimated Yearly Energy Cost $5.78
Based on 3 hrs/day, 11¢/kWh
Cost depends on rates and use
Life
Based on 3 hrs/day45.7 years
Light Appearance
WarmCool
4000 K
Energy Used48 watts
  • DLC
    Listed

Day-Brite EvoGrid 48 watt 2'x4' dimmable LED recessed troffer with emergency battery backup is an energy efficient luminaire that replaces a 64 watt fluorescent fixture. Its soft opal diffuser with large luminous area minimizes apparent brightness compared to other basket luminaires and provides general lighting perfect for a wide variety of applications.

  • 0-10V dimming - Compatible with Lutron NTSTV-DV-WH and DVSTV-WH dimmers
  • Low profile configuration is only 2 3/4" deep, requiring minimal plenum space
  • Directs a controlled amount of light to the higher angles in the room to balance the brightness of the surfaces and eliminate "cave effect" while creating the impression of a larger, brighter space without glare
  • Designed for use with standard Grid (NEMA "G") or Narrow Grid (NEMA "NFG") ceiling T-bars
  • Luminaire finish is matte white polyester for a high quality, durable finish
  • T-bar grid clips are integral to body
  • LED board is easily accessible from below without tools. Single LED board is replaceable if needed via plug-in connectors to ensure long service life
  • LED driver is accessible from above
  • Five year limited luminaire warranty includes LED boards and driver. Emergency battery has a three year warranty
  • Diffuser requires no frames or fasteners and can be easily removed from below without tools if needed
Full Specs

Brand

Day-Brite

Product Line

EvoGrid
Energy Used

Energy Used

A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.

48 Watts
Fluorescent Equivalent

Fluorescent Equivalent

The total wattage of fluorescent lamps in a fixture that this fixture replaces.

96

Line Voltage

120-277
CRI

CRI

Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.

80
Color Temperature (Kelvin)

Color Temperature (Kelvin)

An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).

4000
Brightness (Lumens)

Brightness (Lumens)

A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.

4800
Average Rated Life (hr)

Average Rated Life (hr)

A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.

50000

Battery

Yes
Bulb Type Supplied

Bulb Type Supplied

Type of bulb supplied with the fixture

LED
Length (in)

Length (in)

Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.

48
Width (in)

Width (in)

For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.

24
Height (in)

Height (in)

For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.

2.75
Finish

Finish

The decorative finish of the item.

White

Housing

Die-formed one piece

Warranty

3 year limited
Damp Location

Damp Location

Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment

Yes
DLC Listing

DLC Listing

Approved by the DesignLights Consortium, a collaboration of utility companies and regional energy efficiency organizations. Approved products meet the consortium's standards for ensuring high-quality, energy-efficient lighting design. There are two levels, Standard and Premium

Standard
DLC Code

DLC Code

Code identifying the product in DLC (DesignLights Consortium) listings.

PX1AVG11
Dimmable

Dimmable

Indicates whether a bulb can be dimmed in conjunction with a suitable dimmer control.

Yes
Battery Backup

Battery Backup

Has a backup battery to allow it to continue functioning in case of power failure.

Yes
