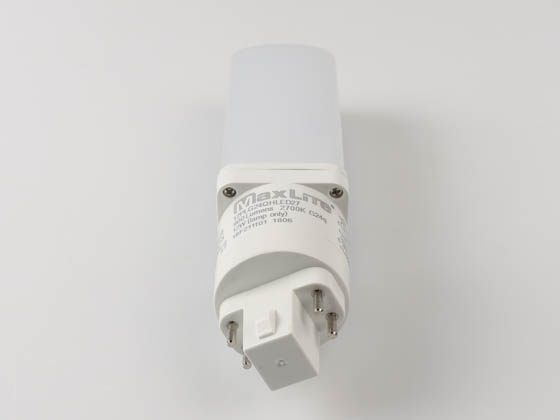

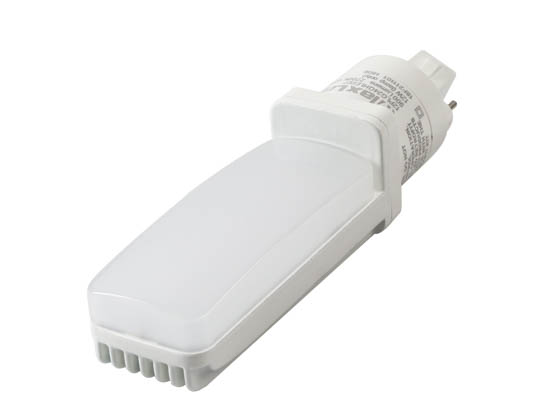

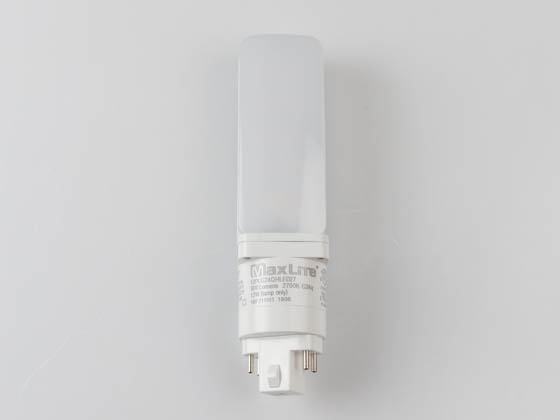

Maxlite 12W 4 Pin Horizontal 2700K G24q LED Bulb, Uses Existing Ballast

SKU: 1408684 | Ordering Code: 12PLG24QHLED27  | UPC: 767627900020

$9.79 per Bulb
Add to Cart
Save to BulbTrack ?

My BulbTrack

Finding the lighting solutions you need might be simple at Bulbs.com, but buying them is even easier. Thanks to our exclusive BulbTrack feature, you can quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page. Products are added to your My BulbTrack page when you check out from your shopping cart or add them from the product description pages.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home. Make buying your replacement lighting as simple as it should be. Create your BulbTrack today!


On BackorderTypically ships in 7-10 business days

Free ground shipping on orders over $99*

Product Highlights

  • Estimated life of 45.7 years based on 3 hours use per day
  • No lead or mercury means easy and environmentally safe disposal
Description

Lighting Facts Per Bulb

Brightness 900 lumens
Estimated Yearly Energy Cost $1.45
Based on 3 hrs/day, 11¢/kWh
Cost depends on rates and use
Life
Based on 3 hrs/day45.7 years
Light Appearance
WarmCool
2700 K
Energy Used12 watts

The horizontal mounted non-dimmable lamp from Maxlite is a plug 'n play LED replacement for CFL downlights with a 4-pin G24q or GX24q (electronic CFL ballast) socket. Voltage is driven by the installed ballast. Directly replaces a 26W 4-pin CFLs. Compatible with most CFL ballasts. Simply take out the existing CFL lamp and replace with this lamp. No bypassing of the existing ballast is needed.

For a list of compatible ballasts please contact a Bulbs.com Lighting Specialist at 888-455-2800.

  • Input voltage determined by the CFL ballast
  • The base can rotate 180°
  • Compatible with most electronic CFL ballasts
  • Do not use in enclosed fixtures
  • Do not use with dimmers
  • Not intended for use with emergency exit signs

Installation:

  • Power off the fixture
  • Carefully remove the installed CFL lamp(s)
  • Verify CFL ID information for compatibility with this lamp
  • Insert the lamp into all open socket(s) within the fixture
  • Turn power on

DO NOT "hot swap" this lamp.  Turn off fixture before replacing existing bulb. This lamp only operates on electronic ballasts. If the lamp does not light when the luminaire is turned on, remove the lamp from the luminaire. If the lamp or luminaire exhibits undesirable operation (buzzing, flickering, etc.) immediately turn off power and remove lamp.

Full Specs

Brand

MaxLite

Model Number

12PLG24QHLED27

Energy Used

A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.

Energy Used
12 Watts

Fluorescent Equivalent

The total wattage of fluorescent lamps in a fixture that this fixture replaces.

Fluorescent Equivalent
26

Base

The end (or ends) of the lamp that fits into the socket.

Base
G24q

Bulb Shape

The description of the general appearance of a lamp/bulb consists of a letter(s) followed by a number. The letter indicates the shape of the bulb and the number relates to the diameter of the bulb in eighths of an inch. For example, a common household bulb is the A-19. The bulb is "A" shape and the diameter would be nineteen 8ths of an inch, or 2 3/8".

Bulb Shape
Twin Tube Alt

Bulb Color

The color of the light produced by a bulb

Bulb Color
Warm White

CRI

Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.

CRI
80

Color Temperature (Kelvin)

An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).

Color Temperature (Kelvin)
2700

Brightness (Lumens)

A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.

Brightness (Lumens)
900

Bulb Finish

The surface finish of a bulb, which may affect the quality of the light emitted.

Bulb Finish
Opaque

Bulb Technology

The technology implemented by the bulb, e.g. incandescent, halogen, LED

Bulb Technology
LED

Average Rated Life (hr)

A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.

Average Rated Life (hr)
50000

Operating Temperature (°F)

The ambient temperature in which the product can safely operate.

Operating Temperature (°F)
-4 to 105

Beam Angle (°)

The width of a light beam, expressed in degrees. The beam angle is often part of the ordering code for reflector lamps. For example, a 50PAR30/HIR/NFL25 is a 50-watt PAR30 narrow flood lamp with a beam angle of 25 degrees.

Beam Angle (°)
140

Bulb Power Type

Defines how a lamp is powered, whether it needs a ballast or not, or can use either

Bulb Power Type
Ballast Compatible

Length (in)

Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.

Length (in)
5.9

Width (in)

For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.

Width (in)
1.4

Mounting

Horizontal

Warranty

5 year limited

Damp Location

Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment

Damp Location
Yes

DLC Listing

Approved by the DesignLights Consortium, a collaboration of utility companies and regional energy efficiency organizations. Approved products meet the consortium's standards for ensuring high-quality, energy-efficient lighting design. There are two levels, Standard and Premium

DLC Listing
Standard

DLC Code

Code identifying the product in DLC (DesignLights Consortium) listings.

DLC Code
PVNUEDEW
