20 Watt LED Wallpack Fixture, Full Cutoff

SKU: 70881 | Ordering Code: MLSWP20LED50DS

Ships from SupplierUsually ships in 2-3 business days.
Price per Fixture
Each $179.99
 x  Fixture
Add to Cart
Save to BulbTrack ?

My BulbTrack

Finding the lighting solutions you need might be simple at Bulbs.com, but buying them is even easier. Thanks to our exclusive BulbTrack feature, you can quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page. Products are added to your My BulbTrack page when you check out from your shopping cart or add them from the product description pages.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home. Make buying your replacement lighting as simple as it should be. Create your BulbTrack today!



Product Details

Brand

MaxLite

Energy Used

A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.

Energy Used
20 Watts

Line Voltage

120-277

Height (in)

For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.

Height (in)
9.06

Width (in)

For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.

Width (in)
11.26

Length (in)

Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.

Length (in)
12.6

Average Rated Life (hr)

A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.

Average Rated Life (hr)
50000

Light Output (Lumens)

A unit measurement of the rate at which a lamp produces light, most often provided in lumens or candlepower. Ratings of initial light output provided by manufacturers express the total light output after 100 hours of operation.

Light Output (Lumens)
1400

Finish

Light bulbs: the coating applied to the bulb causing light to be emitted in certain colors or color temperatures (see Color Temperature). Popular finishes include clear, frosted, colors (amber, blue, green, red, etc.) as well as color temperature designations ranging from warm white (2700K) to natural daylight (6500K). Fixtures: the decorative finish of the item.

Finish
Dark Bronze

CRI

Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.

CRI
73

Color Temperature (Kelvin)

An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).

Color Temperature (Kelvin)
5000

Housing

Aluminum

Mounting

Can be mounted to electrical box or direct to surface

Bulb Type Supplied

Type of bulb supplied with the fixture

Bulb Type Supplied
LED

Dark Sky Compliant

Dark Sky Compliant products have been approved by the International Dark Sky Association (IDA), which ensures that the Upward Light Output Ratio of the product is deemed "full cut-off" or "fully shielded". This means that the luminous intensity (in candelas) at or above an angle of 90 above nadir is zero, and the luminous intensity (in candelas) at or above a vertical angle of 80 above nadir does not numerically exceed 10% of the luminous flux (in lumens) of the lamp or lamps in the luminaire.

Dark Sky Compliant
Yes

Photocell

Optional

Motion Sensor

Optional

Wet Location

Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.

Wet Location
Yes

Lighting Facts Approved

Lighting Facts is a program of the US Department of Energy, designed to ensure that the LED products you find on the market meet your expectations for performance.

Lighting Facts Approved
Yes

Warranty

5 year limited

DLC Listed

Approved by the DesignLights Consortium, a collaboration of utility companies and regional energy efficiency organizations. Approved products meet the consortium's standards for ensuring high-quality, energy-efficient lighting design.

DLC Listed
Yes
Description

Reviews

Q & A

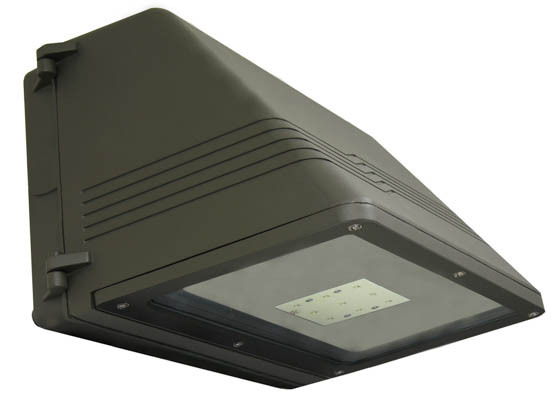

MaxLite 20 Watt LED wallpack fixture. Equivalent up to a 100 metal halide. Heavy-duty cast aluminum one-piece housing, polyester coated, rust and corrosion proof. Fixture is sealed to be dirt and bug proof. High quality anti-shock Boran glass lens. Aluminum components in the LED module act as heat sinks to reduce heat and add to life. An efficient replacement for metal halide and high pressure sodium fixtures. Can mount to recessed outlet box or direct to surface. Dusk to Dawn/Occupancy sensor compatible.  Also available in white.

  • ETL and wet location listed
  • DLC qualified
  • Dark Sky compliant
