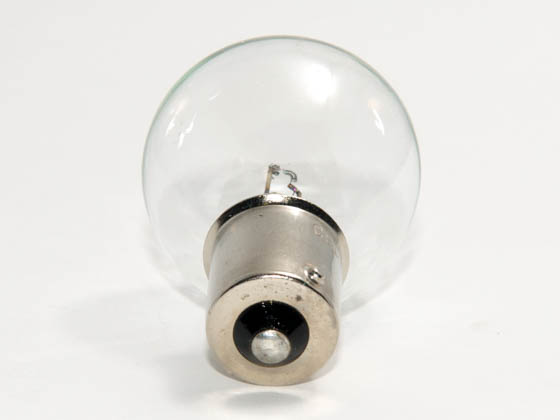

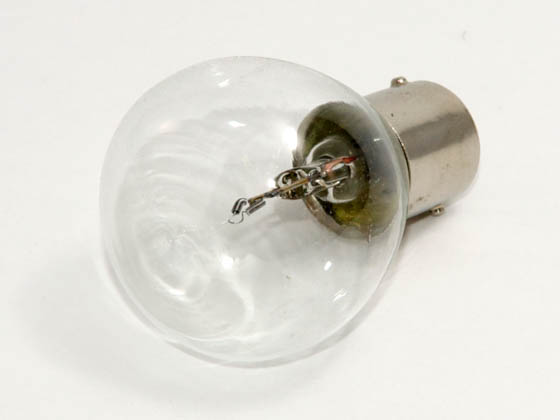

37.5 Watt, 12.5 Volt RP-11 Automotive Bulb

SKU: C1195 | Ordering Code: 1195

Sorry, this product is not available to purchase.

Product Details

Brand

CEC Industries

Energy Used

A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.

Energy Used
37.5 Watts

Volts

A measure of "electrical pressure" between two points. The voltage specification of an incandescent lamp is the electrical "pressure" required to drive it at its designed point. The "voltage" of a ballast (e.g. 120 V) refers to the line voltage coming from the power source and is connected to the ballast.

Volts
12.5

Bulb Shape

The description of the general appearance of a lamp/bulb consists of a letter(s) followed by a number. The letter indicates the shape of the bulb and the number relates to the diameter of the bulb in eighths of an inch. For example, a common household bulb is the A-19. The bulb is "A" shape and the diameter would be nineteen 8ths of an inch, or 2 3/8".

Bulb Shape
RP-11

Base

The end (or ends) of the lamp that fits into the socket.

Base
Single Contact Bayonet (BA15s)

Class and Filament

A designation used to describe the shape or structure of the filament in an incandescent or halogen light bulb. Most commonly used for specialty products like rough service and antique replica lamps.

Class and Filament
C-6

Diameter (in)

Light bulbs: a measurement of a bulb's width taken at the widest point of the bulb. Fixtures: the measurement across the widest point of a circular fixture.

Diameter (in)
1.38

Length (in)

Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.

Length (in)
2.25

Average Rated Life (hr)

A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.

Average Rated Life (hr)
300

GE

A General Electric brand-specific product number for an equivalent item and is provided for the purpose of cross-referencing.

GE
1195

Osram Sylvania

An Osram Sylvania brand-specific product number for an equivalent item and is provided for the purpose of cross-referencing.

Osram Sylvania
1195

Bulb Technology

The technology implemented by the bulb, e.g. incandescent, halogen, LED

Bulb Technology
Incandescent
Description

Reviews

Q & A

CEC Industries brand automotive lamp.  37.5 Watts and 12.5 volts.  RP-11 size and shape, single contact bayonet base.

  • Match number 1195 with your current lamp to get an exact match
