Sorry, this product is not available to purchase.
- Energy efficient replacement for a 150 watt HID bulb
- Estimated life of 45.7 years based on 3 hours use per day
- No lead or mercury means easy and environmentally safe disposal
- Adjustable color
DLC
Listed
Color
Selectable
On
sale

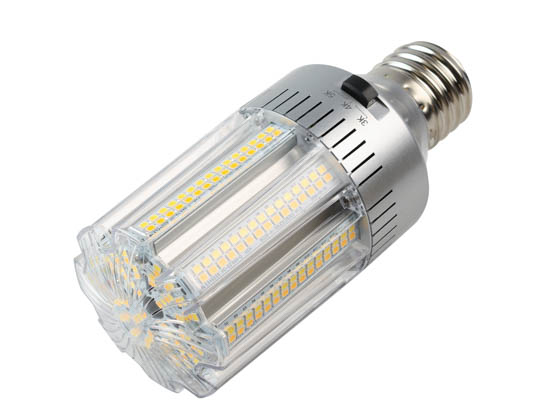

Light Efficient Design 24 watt non-dimmable color adjustable (3000K/4000K/5000K) LED Corn bulb with mogul base replaces a 150 watt metal halide or high pressure lamp and is ideal for post top or bollard applications.
When installing this lamp the ballast must be bypassed when present.
Installing additional surge/lightning protectors is highly recommended and helps to eliminate premature driver failure caused by surges and other power fluctuations.
- Change bulb color temperature with the click of a switch
- Dual stage MOV (Metal Oxide Varistors) included to protect against voltage surges
- Includes integrated 6kA surge protection
- UL damp rated for open and fully enclosed fixtures
- Active cooling fan
- Operating temperature -40ºF to 122ºF
Brand | Light Efficient Design |
Model Number | LED-8029M345-A |
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
| 24 Watts |
HID Equivalent
The wattage value of a High Intensity Discharge (HID) bulb of similar brightness.
| 150 |
Volts
A measure of "electrical pressure" between two points. The voltage specification of an incandescent lamp is the electrical "pressure" required to drive it at its designed point. The "voltage" of a ballast (e.g. 120 V) refers to the line voltage coming from the power source and is connected to the ballast.
| 120-277 |
Base
The end (or ends) of the lamp that fits into the socket.
| Mogul (E39) |
Bulb Shape
The description of the general appearance of a lamp/bulb consists of a letter(s) followed by a number. The letter indicates the shape of the bulb and the number relates to the diameter of the bulb in eighths of an inch. For example, a common household bulb is the A-19. The bulb is "A" shape and the diameter would be nineteen 8ths of an inch, or 2 3/8".
| Post Top |
Bulb Color
The color of the light produced by a bulb
| Soft White/Cool White/Bright White |
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
| 80 |
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
| 3000/4000/5000 |
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
| 3000 |
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
| 5000 |
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
| 3170/3330/3360 |
Bulb Finish
The surface finish of a bulb, which may affect the quality of the light emitted.
| Clear |
Bulb Technology
The technology implemented by the bulb, e.g. incandescent, halogen, LED
| LED |
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
| 50000 |
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
| -40 to 122 |
Beam Angle (°)
The width of a light beam, expressed in degrees. The beam angle is often part of the ordering code for reflector lamps. For example, a 50PAR30/HIR/NFL25 is a 50-watt PAR30 narrow flood lamp with a beam angle of 25 degrees.
| 360 |
Bulb Power Type
Defines how a lamp is powered, whether it needs a ballast or not, or can use either
| Ballast Bypass |
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
| 6.9 |
Diameter (in)
Light bulbs: a measurement of a bulb's width taken at the widest point of the bulb. Fixtures: the measurement across the widest point of a circular fixture.
| 3 |
Mounting | Horizontal, vertical or sideways |
Warranty | 5 year limited |
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
| Yes |
DLC Listing
Approved by the DesignLights Consortium, a collaboration of utility companies and regional energy efficiency organizations. Approved products meet the consortium's standards for ensuring high-quality, energy-efficient lighting design. There are three categories, Standard, Premium and Horticultural, plus Luna for light-pollution minimization.
| Standard |
DLC Code
Code identifying the product in DLC (DesignLights Consortium) listings.
| PP4D3CHN |
Rated for Fully Enclosed Fixtures
Not all LED bulbs are suitable for use in enclosed fixtures, due to the amount of heat they generate. Rated bulbs have been tested and approved as safe for enclosed fixtures.
| Yes |
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
| Yes |
