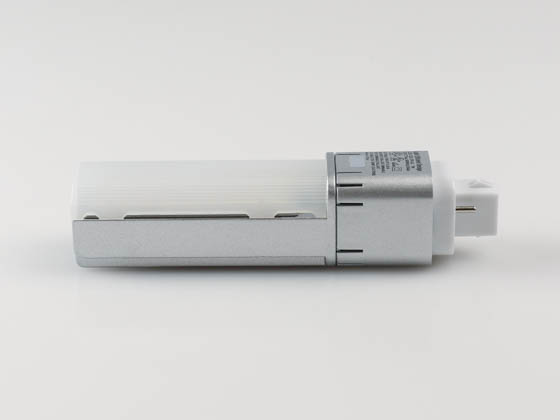

Light Efficient Design Horizontal 7W 2 Pin GX23-2 4000K Hybrid LED Bulb

SKU: LED-7312-40K-G2 | Ordering Code: LED-7312-40K-G2  | UPC: 844006073244

Sorry, this product is not available to purchase.

Options

Bulb Color
Neutral White
Color Temperature (Kelvin)
Color Temperature Guide 3500

Product Highlights

  • Estimated life of 45.7 years based on 3 hours use per day
  • No lead or mercury means easy and environmentally safe disposal
Description

Lighting Facts Per Bulb

Brightness 914 lumens
Estimated Yearly Energy Cost $0.84
Based on 3 hrs/day, 11¢/kWh
Cost depends on rates and use
Life
Based on 3 hrs/day45.7 years
Light Appearance
WarmCool
4000 K
Energy Used7 watts

Light Efficient Design's non-dimmable horizontal 7 watt 2 pin GX23-2 base LED PL lamp is a hybrid that can either work with up to a 13W CFL ballast or a 120-277V line voltage bypass application.

  • Works with up to a 13W compatible electronic CFL ballast or line driven in a ballast bypass application
  • Minimum fixture dimensions 6" wide and 6" high
  • Ideal for horizontal or base-down applications
  • Suitable for dry and damp locations only
  • For use in open fixtures only. Not rated for use in enclosed fixtures.

Installation for plug 'n play application:

  • Power off the fixture
  • Carefully remove the installed CFL lamp(s)
  • Verify CFL ID information for compatibility with the LED lamp
  • Insert the LED lamp into all open socket(s) within the fixture
  • Turn power on

Do not "hot swap" this lamp. Turn off fixture before replacing existing bulb. If the lamp does not light when the luminaire is turned on, remove the lamp from the luminaire. If the lamp or luminaire exhibits undesirable operation (buzzing, flickering, etc.) immediately turn off power and remove lamp.

Full Specs

Brand

Light Efficient Design

Model Number

LED-7312-40K-G2
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
7 Watts
Fluorescent Equivalent
The total wattage of fluorescent lamps in a fixture that this fixture replaces.
13
Base
The end (or ends) of the lamp that fits into the socket.
GX23
Bulb Shape
The description of the general appearance of a lamp/bulb consists of a letter(s) followed by a number. The letter indicates the shape of the bulb and the number relates to the diameter of the bulb in eighths of an inch. For example, a common household bulb is the A-19. The bulb is "A" shape and the diameter would be nineteen 8ths of an inch, or 2 3/8".
Twin Tube Alt
Bulb Color
The color of the light produced by a bulb
Cool White
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
84
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
4000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
914
Bulb Finish
The surface finish of a bulb, which may affect the quality of the light emitted.
Opaque
Bulb Technology
The technology implemented by the bulb, e.g. incandescent, halogen, LED
LED
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
50000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
0 to 85
Beam Angle (°)
The width of a light beam, expressed in degrees. The beam angle is often part of the ordering code for reflector lamps. For example, a 50PAR30/HIR/NFL25 is a 50-watt PAR30 narrow flood lamp with a beam angle of 25 degrees.
120
Bulb Power Type
Defines how a lamp is powered, whether it needs a ballast or not, or can use either
Hybrid
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
5.8
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
1.4
Orientation
The angle that the fixture can be mounted at
Horizontal only

Mounting

Horizontal

Manufacturer Warranty

5 year limited
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes
