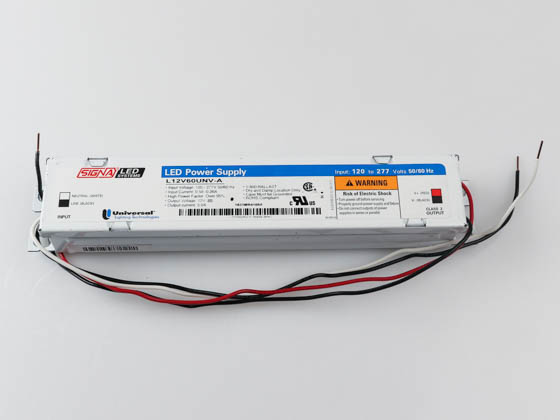

Universal Everline 12 Volt 60 Watt Class 2 Constant Voltage LED Driver

SKU: L12V60UNV-A000C | Ordering Code: L12V60UNV-A000C  | UPC: 768386277040

Add to Cart
Save to BulbTrack ?

My BulbTrack

Finding the lighting solutions you need might be simple at Bulbs.com, but buying them is even easier. Thanks to our exclusive BulbTrack feature, you can quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page. Products are added to your My BulbTrack page when you check out from your shopping cart or add them from the product description pages.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home. Make buying your replacement lighting as simple as it should be. Create your BulbTrack today!

Clearance ItemOnly 1 left in stock. Will not be re-stocked. Typically ships within one business day.
  • Clearance

Everline D12V60UNV-A010C constant voltage LED driver is ideal for maximum energy savings and control applications. This non-dimmable driver features high efficiency constant voltage. Each lead is color coded and is 12.5" long.

Constant voltage drivers are typically used in outdoor fixtures and signs. These LED drivers provide a constant DC voltage output, typically 12V or 24V. Constant voltage drivers are ideal for sign applications because of their flexibility to connect a wide range of modules in parallel.

  • Non-dimmable output
  • Input voltage 120-277V
  • Input Current Max. - 0.58A/120V; 0.26A/277V
  • Input Power Max. - 69 watts
  • Input Frequency - 50-60 Hz
  • Power Factor - > 0.90
  • THD Max. - <10%
  • Output Voltage - 12, +/-5%
  • Output Current - 5.0A max.
  • Output Power - 60 watt max.
  • UL dry & damp listed
Full Specs



Input Volts

Output Voltage

Output Voltage

A measure of electrical potential, expressed in volts. Voltage "force" is the measurement of pressure that pushes electrical current through a conductor.

Input Watts

Output Watts

Output Watts

The transformed power output from a transformer.
Operating Temperature (°F)

Operating Temperature (°F)

The ambient temperature in which the product can safely operate.
-40 to 140
Length (in)

Length (in)

Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
Width (in)

Width (in)

For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
Height (in)

Height (in)

For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.

Power Factor

Total Harmonic Distortion (THD)

Total Harmonic Distortion (THD)

Total harmonic distortion, or THD, is the measure of how much a ballast can distort the waveform of that building’s power supply and interfere with other equipment. Electronic ballasts today are rated at less than 20 percent, 15 percent, or less than 10 percent THD. The magnetic ballast is rated in the 20 to 28 percent range. The lower the THD the better and more efficient the ballast, and the less likely it is to interfere with other electronic equipment.


5 year limited
Damp Location

Damp Location

Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
