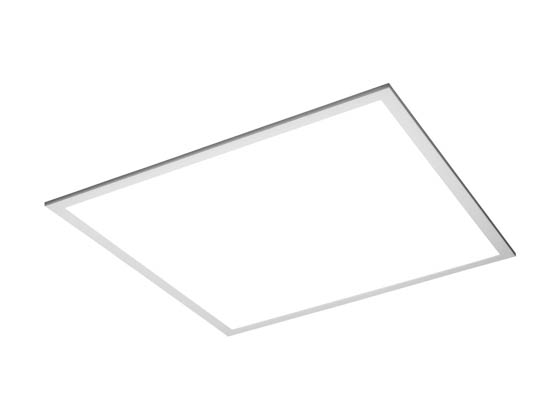

TCP Dimmable 36 Watt 2x2 ft 5000K Flat Panel LED Fixture

SKU: TCPFP2UZD3650K | Ordering Code: TCPFP2UZD3650K  | UPC: 762148067146

1 to 4 $69.79 per Fixture
5 + $60.79
Add to Cart
Save to BulbTrack ?

My BulbTrack

Finding the lighting solutions you need might be simple at Bulbs.com, but buying them is even easier. Thanks to our exclusive BulbTrack feature, you can quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page. Products are added to your My BulbTrack page when you check out from your shopping cart or add them from the product description pages.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home. Make buying your replacement lighting as simple as it should be. Create your BulbTrack today!


In Stock

Add 2 to your cart to get free ground shipping *

  • Estimated life of 11.4 years based on 12 hours use per day
Description

TCP Flat Panel LED fixture features a slim, low-profile design with full panel diffusion and uniformity. Offers a cost effective solution to maximize savings and take advantage of utility rebates without sacrificing performance. Applications include T-bar grid ceilings, recessed, surface mount and suspended. Ideal for offices, retail stores, schools, hospitality, restaurants and healthcare.

  • UP to 51% less energy than fluorescent alternatives
  • Long 50,000 hour rated life
  • Excellent color consistency and CRI
  • Fits standard 1" and 9/16" T-bar grid ceilings
  • Innovative edge lit technology paired with acrylic light guide and thin frosted white diffuser
  • Delivers full panel diffusion and superior uniformity
  • Slim, low-profile design
  • Compatible with most 0-10V dimmers such as Lutron DVSTV-WH and NTSTV-DV-WH
  • Housing - Metal back panel and wiring compartment
  • Frame - Aluminum post painted white
  • Lens - Frosted white diffuser
  • IC rated for direct contact with insulation
  • Easy-to-access wiring compartment on back of fixture
  • IP20 rated
  • DLC listed
  • IC rated
  • RoHS compliant
Full Specs

Brand

TCP

Energy Used

A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.

Energy Used
36 Watts

Fluorescent Equivalent

The total wattage of fluorescent lamps in a fixture that this fixture replaces.

Fluorescent Equivalent
68

Line Voltage

120-277

CRI

Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.

CRI
80

Color Temperature (Kelvin)

An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).

Color Temperature (Kelvin)
5000

Brightness (lumens)

A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.

Brightness (lumens)
3600

Average Rated Life (hr)

A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.

Average Rated Life (hr)
50000

Operating Temperature (°F)

The ambient temperature in which the product can safely operate.

Operating Temperature (°F)
-4 to 104

Beam Angle (°)

The width of a light beam, expressed in degrees. The beam angle is often part of the ordering code for reflector lamps. For example, a 50PAR30/HIR/NFL25 is a 50-watt PAR30 narrow flood lamp with a beam angle of 25 degrees.

Beam Angle (°)
120

Length (in)

Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.

Length (in)
24

Width (in)

For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.

Width (in)
24

Height (in)

For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.

Height (in)
1.75

Finish

The decorative finish of the item.

Finish
White

Housing

Metal back panel

Bulb Type Supplied

Type of bulb supplied with the fixture

Bulb Type Supplied
LED

Warranty

5 year limited

Damp Location

Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment

Damp Location
Yes

DLC Listed

Approved by the DesignLights Consortium, a collaboration of utility companies and regional energy efficiency organizations. Approved products meet the consortium's standards for ensuring high-quality, energy-efficient lighting design.

DLC Listed
Yes

DLC Code

Code identifying the product in DLC (DesignLights Consortium) listings.

DLC Code
PFS5PJ9Y

Dimmable

Indicates whether a bulb can be dimmed in conjunction with a suitable dimmer control.

Dimmable
Yes
Customers Also Viewed
Customer Reviews
Q & A
can this be mounted to ceiling as received with out mounting kit / also what is needed for wireless switch for it

ron

For a wireless application you can use Lutron product which we sell. I would suggest calling Bulbs.com and speak with one of our lighting specialist who can assist you with what types of Lutron products are needed.
