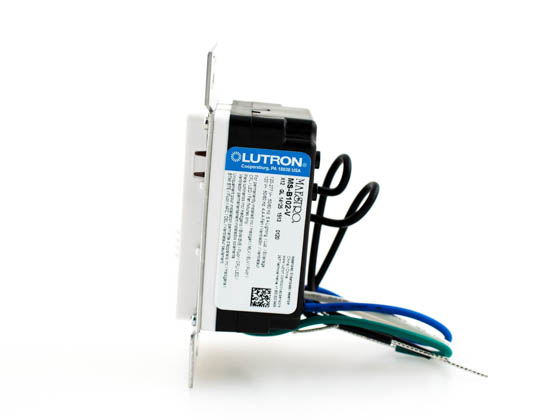

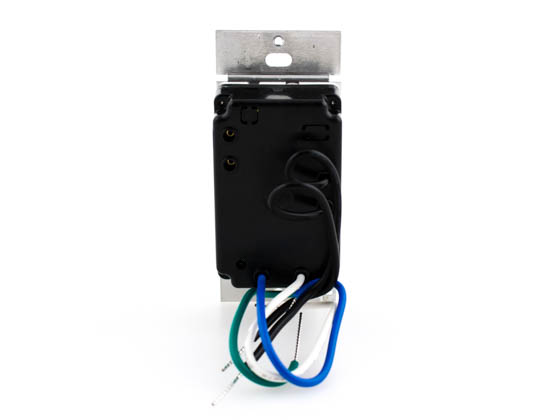

Lutron Maestro Dual Technology Ultrasonic and PIR Vacancy Sensor Switch, Single Circuit

SKU: MS-B102-V-WH | Ordering Code: MS-B102-V-WH  | UPC: 784276086004

$64.99 per Sensor
Sensor
Add to Cart
Save to BulbTrack ?

My BulbTrack

Finding the lighting solutions you need might be simple at Bulbs.com, but buying them is even easier. Thanks to our exclusive BulbTrack feature, you can quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page. Products are added to your My BulbTrack page when you check out from your shopping cart or add them from the product description pages.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home. Make buying your replacement lighting as simple as it should be. Create your BulbTrack today!


Clearance ItemOnly 1 left in stock. Will not be re-stocked. Typically ships within one business day.

Add 2 cases to your cart to get free ground shipping *

Description

This Lutron Maestro® Dual Technology Vacancy Sensor Switch applies Lutron's exclusive XCT™ Technology to the ultrasonic as well as the passive infrared technology in this sensor to create a product that can detect very fine motion, such as typing. This product also includes all of the great features found in the rest of the Maestro sensor family, including: adaptive relay switching, smart ambient light detection and simple button presses for changing settings.

This single-circuit version can be used to meet many of the Title 20/24 requirements for vacancy sensors

Switches all lighting loads - incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent

  • Works with Maestro accessory switches in multi-location applications
  • XCT™ Technology for major, minor, fine and very fine motion detection
  • 180º sensor field-of-view
  • Tamper-resistant PIR lens
  • Adjustable timeout for each circuit (1, 5, 15 or 30 minutes
  • Sensitivity adjustment
    • PIR (Hi, Med, Low, Min)
    • Ultrasonic (Hi, Med, Low, Off)
  • Requires neutral wiring
  • 120-277V Lighting 6A
  • 120V Fan 4.4A (1/6 HP)

Wallplate not included.  A screwless wallplate can be purchased separately.  See Lutron # CW-1-WH.

To be installed by a licensed electrician.

Full Specs

Brand

Lutron Electronics

Product Line

Maestro

Line Voltage

120-277

Width (in)

For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.

Width (in)
2.94

Height (in)

For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.

Height (in)
4.69

Finish

The decorative finish of the item.

Finish
White

Warranty

5 year limited
