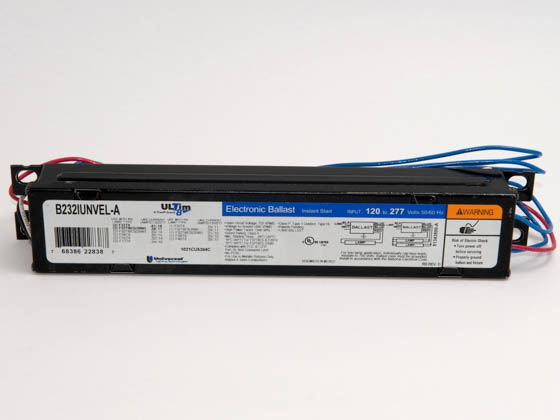

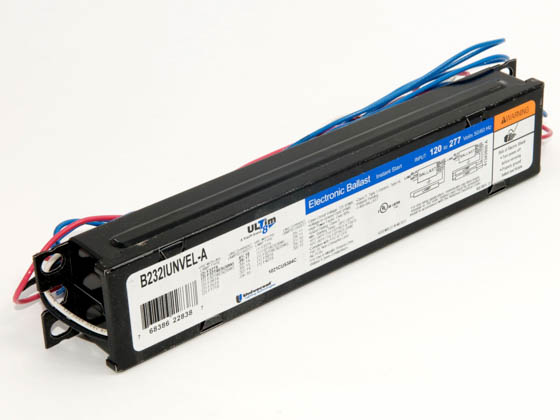

Universal 120-277 Volt Two Lamp High Efficiency F32T8 Electronic IS Ballast, Low Ballast Factor Model

SKU: B232IUNVEL-A010C | Ordering Code: B232IUNVEL-A010C  | UPC: 768386228387

Sorry, this product is not available to purchase.
  • Ignites up to two T8 lamps
Universal Ultim-8 High Efficiency Electronic Instant Start Ballast WITH LOW BALLAST FACTOR Ignites Two F17T8, FB017T8, One or Two F25T8, FB025T8, FB031T8, F32T8ES(25-30W), F32T8, FB032T8 Lamps or ONE F40T8 Lamp of 120-277 Voltage. Optimized for Two F32T8 Lamp. LAMP NOT INCLUDED.
Full Specs



Input Volts


Input Watts


Number of Lamps


Ballast Factor

The percentage of a lamp's rated lumen output that can be expected when operated on a specific commercially available ballast. For example, a ballast with a ballast factor of 0.93 will result in the lamps emitting 93% of their rated lumen output. A ballast with a lower ballast factor results in less light output and also generally consumes less power.
Ballast Factor

Ballast Type

Magnetic ballasts are a legacy technology and use inductance to transform the line voltage to the voltage required to "fire" or excite the gasses in a lamp. Electronic ballasts use a variety of starting methods, and are more efficient than magnetic ballasts in converting input power to the proper lamp power and operate fluorescent lamps at higher frequencies, resulting in an overall lamp-ballast system – increasing efficacy 15% to 20% over a magnetic equivalent.
Ballast Type

Length (in)

Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
Length (in)

Width (in)

For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
Width (in)

Height (in)

For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
Height (in)

Power Factor


Total Harmonic Distortion (THD)

Total harmonic distortion, or THD, is the measure of how much a ballast can distort the waveform of that building’s power supply and interfere with other equipment. Electronic ballasts today are rated at less than 20 percent, 15 percent, or less than 10 percent THD. The magnetic ballast is rated in the 20 to 28 percent range. The lower the THD the better and more efficient the ballast, and the less likely it is to interfere with other electronic equipment.
Total Harmonic Distortion (THD)

Lamps by Wattage

1x25W, 1x31W, 1x32W, 1x40W, 2x25W, 2x31W, 2x32W

Ballast Lamp Type

The type of bulb the ballast can fire.
Ballast Lamp Type

Start Type

For Ballasts, indicates the method the ballast uses to start its bulbs. HID ballasts can be Probe or Pulse start. Fluorescent ballasts can be Rapid, Instant or Programmed start. For HID and Fluorescent bulbs, indicates the start-type of ballast that the bulb will work with.
Start Type

Product Notes: Used most often in pre-existing fixtures or for retrofit applications in over-lit areas where energy costs are high. Using these High Efficiency (.77 Ballast Factor) Low Ballast Factor ballasts will reduce energy consumption and light level by about 10% while providing a well-lit, interference-free work environment. Typical application: Office space with too much overhead lighting and electricity costs of > $0.10 per kWh.
