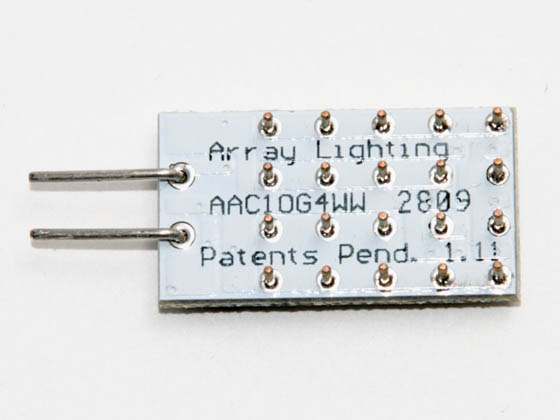

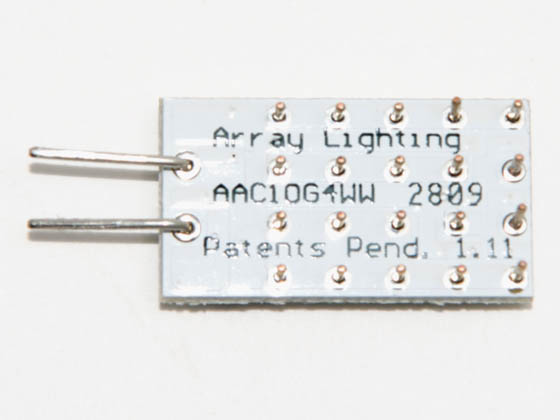

1 Watt, 12 Volt DIMMABLE LED Warm White Bi-Pin Bulb.

SKU: AAC10G4WW | Ordering Code: AAC10G4WW

Sorry, this product is not available to purchase.

Lighting Facts Per Bulb

Brightness 60 lumens
Estimated Yearly Energy Cost $0.12
Based on 3 hrs/day, 11¢/kWh
Cost depends on rates and use
Based on 3 hrs/day18.3 years
Light Appearance
3000 K
Energy Used1 watts

Array Lighting Brand 1 Watt DIMMABLE LED lamp replaces many bi-pin halogen capsule lamps.

  • Perfect to use anywhere you are using a 12 volt capsule with G4 bi-pin base

  • 3000K "Warm White" color closely replicates the color of halogen capsules

  • No lead or mercury means easy and environmentally safe disposal

  • 60 Lumens initial light output is comparable to many lower wattage halogen capsules

  • VERY long life - rated to still put out 70% as much light after 20,000 hours of operation as it does when brand new

Also, NOT RECOMMENDED for use in enclosed fixtures because heat buildup can shorten life.  DO NOT "hot swap" this lamp.  Turn off fixture before replacing existing bulb.

Full Specs

Product Details


Array Lighting

Energy Used

A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
Energy Used
1 Watt


A measure of "electrical pressure" between two points. The voltage specification of an incandescent lamp is the electrical "pressure" required to drive it at its designed point. The "voltage" of a ballast (e.g. 120 V) refers to the line voltage coming from the power source and is connected to the ballast.


The end (or ends) of the lamp that fits into the socket.

Bulb Color

The color of the light produced by a bulb
Bulb Color
Warm White

Color Temperature (Kelvin)

An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
Color Temperature (Kelvin)

Brightness (Lumens)

A rating of the inital light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
Brightness (Lumens)

Bulb Technology

The technology implemented by the bulb, e.g. incandescent, halogen, LED
Bulb Technology

Average Rated Life (hr)

A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
Average Rated Life (hr)

Length (in)

Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
Length (in)

Width (in)

For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
Width (in)


Indicates whether a bulb can be dimmed in conjunction with a suitable dimmer control.

Product Notes: Excessive or Continuous Heat Build-up will Drastically Reduce the Life of LED Products. Well Ventilated AND Open Fixtures Are Required for Proper Light Output and Product Life. DO NOT HOT-SWAP THIS BULB-Turn Off Power To Fixture Before Installation. If Your Fixture Already Has a Lens, Remove It (If Possible) for Best Optics and Heat Exchange. NOT DESIGNED FOR OUTDOOR USE NOR FOR USE IN WET LOCATIONS.
