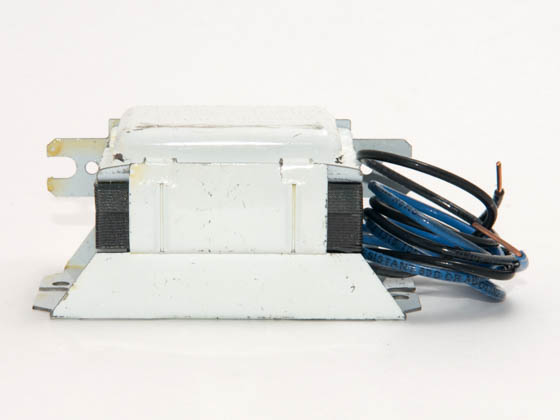

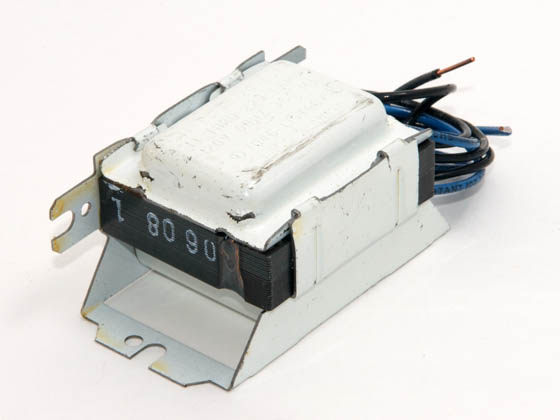

120 Volt 14-20 Watt One Lamp T8 or T12 Magnetic Transformer

SKU: LC1420CTP | Ordering Code: LC1420CTP (120V)

Clearance ItemOnly 7 left in stock. Will not be re-stocked. Typically ships within one business day.
Price per Ballast
Each $17.99
Ballasts per Case
50
 x
Add to Cart
Save to BulbTrack ?

My BulbTrack

Finding the lighting solutions you need might be simple at Bulbs.com, but buying them is even easier. Thanks to our exclusive BulbTrack feature, you can quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page. Products are added to your My BulbTrack page when you check out from your shopping cart or add them from the product description pages.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home. Make buying your replacement lighting as simple as it should be. Create your BulbTrack today!



Product Details

Brand

Advance Transformer

Input Volts

120

Input Watts

19-22

Number of Lamps

1

Ballast Factor

The percentage of a lamp's rated lumen output that can be expected when operated on a specific commercially available ballast. For example, a ballast with a ballast factor of 0.93 will result in the lamps emitting 93% of their rated lumen output. A ballast with a lower ballast factor results in less light output and also generally consumes less power.

Ballast Factor
84-113%

Ballast Type

Magnetic ballasts are a legacy technology and use inductance to transform the line voltage to the voltage required to "fire" or excite the gasses in a lamp. Electronic ballasts use a variety of starting methods, and are more efficient than magnetic ballasts in converting input power to the proper lamp power and operate fluorescent lamps at higher frequencies, resulting in an overall lamp-ballast system – increasing efficacy 15% to 20% over a magnetic equivalent.

Ballast Type
Magnetic

Height (in)

For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.

Height (in)
1.9

Width (in)

For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.

Width (in)
1.6

Length (in)

Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.

Length (in)
3.1

Power Factor

44-57%

Total Harmonic Distortion (THD)

Total harmonic distortion, or THD, is the measure of how much a ballast can distort the waveform of that building’s power supply and interfere with other equipment. Electronic ballasts today are rated at less than 20 percent, 15 percent, or less than 10 percent THD. The magnetic ballast is rated in the 20 to 28 percent range. The lower the THD the better and more efficient the ballast, and the less likely it is to interfere with other electronic equipment.

Total Harmonic Distortion (THD)
10-20%

Lamps by Wattage

1x14W, 1x15W, 1x18W-20W

Ballast Lamp Type

The type of bulb the ballast can fire.

Ballast Lamp Type
T8/T12
Description

Reviews

Q & A
Advance Magnetic TRANSFORMER (Requires External Starter)* Ignites One F14T12, F14T8/15, F15T12, F15T8, F18T8/22, F19T8/26, F19T8/28, F19T8/30, F20T12, FC6T9 or FC8T9 Linear or Circline Fluorescent Lamp of 120 Voltage. STARTER & LAMP NOT INCLUDED.

Do you have questions about this product?

get answers from real customers and in-house experts with AnswerBox.

2 Questions | 2 Answers
Displaying questions 1-2
  • Q:

    I HAVE AN ANTIQUE PEPSI CLOCK WITH A FLOURESCENT 22 WATT ROUND LAMP. THE BALLAST IS NO GOOD. WOULD THE 120 VOLT 14-20 WATT TRANSFORMER WORK?

    THANKS
    DONNA
    Asked on 7/16/2012 by BLONDIE911 from VERSAILLES, KY

    1 answer

    • CUSTOMER CARE

      A:

      We have three ballasts available that will operate an FC8T9 or 22W Circline Fluorescent. This ballast is one of them. The others can be found using the following link. http://www.bulbs.com/Ballasts/results.aspx?Ntt=fc8t9

      Answered on 7/18/2012 by Product Support from Bulbs.com
  • Q:

    I am looking for a wiring diagram for this ballast? A friend dropped off a light with the old ballast cut out and gave me the new ballast ,but it didn't have a diagram on the ballast or information in the shipping box. Could you help me out?

    Ron
    Asked on 10/28/2010 by Anonymous

    1 answer

    • Staff Reviewer

      A:

      The wiring diagram for this particular ballast can be viewed here:
      http://www.advance.philips.com/ecatalog/FLB_Art/fwdia139.wmf

      Please note that the "S" in the diagram represents the starter. Also keep in mind that only a qualified individual should attempt to wire up this ballast after power to the fixture has been shut off and locked out.

      Answered on 11/1/2010 by Product Support from Bulbs.com
