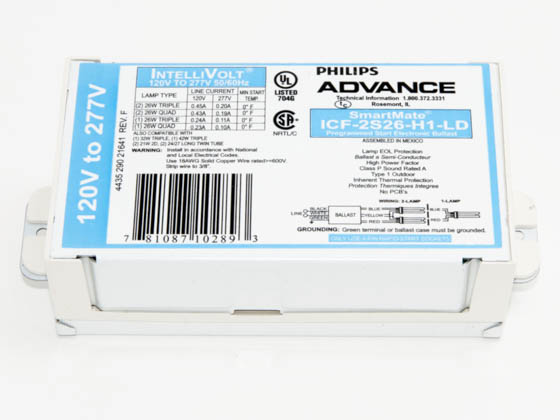

26 Watt, 120-277 Volt Two Lamp Plug-in CFL Electronic Ballast

SKU: ICF2S26H1LDK | Ordering Code: ICF2S26H1LDK (120-277V)

In Stock
Price per Ballast
Each $29.99
Ballasts per Case
12
 x
Add to Cart
Save to BulbTrack ?

My BulbTrack

Finding the lighting solutions you need might be simple at Bulbs.com, but buying them is even easier. Thanks to our exclusive BulbTrack feature, you can quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page. Products are added to your My BulbTrack page when you check out from your shopping cart or add them from the product description pages.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home. Make buying your replacement lighting as simple as it should be. Create your BulbTrack today!



Product Details

Brand

Advance Transformer

Input Volts

120/277

Input Watts

25-54

Number of Lamps

1/2

Ballast Factor

The percentage of a lamp's rated lumen output that can be expected when operated on a specific commercially available ballast. For example, a ballast with a ballast factor of 0.93 will result in the lamps emitting 93% of their rated lumen output. A ballast with a lower ballast factor results in less light output and also generally consumes less power.

Ballast Factor
85-112%

Ballast Type

Magnetic ballasts are a legacy technology and use inductance to transform the line voltage to the voltage required to "fire" or excite the gasses in a lamp. Electronic ballasts use a variety of starting methods, and are more efficient than magnetic ballasts in converting input power to the proper lamp power and operate fluorescent lamps at higher frequencies, resulting in an overall lamp-ballast system – increasing efficacy 15% to 20% over a magnetic equivalent.

Ballast Type
Electronic

Height (in)

For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.

Height (in)
1

Width (in)

For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.

Width (in)
2.5

Length (in)

Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.

Length (in)
4.6

Power Factor

98-99%

Total Harmonic Distortion (THD)

Total harmonic distortion, or THD, is the measure of how much a ballast can distort the waveform of that building’s power supply and interfere with other equipment. Electronic ballasts today are rated at less than 20 percent, 15 percent, or less than 10 percent THD. The magnetic ballast is rated in the 20 to 28 percent range. The lower the THD the better and more efficient the ballast, and the less likely it is to interfere with other electronic equipment.

Total Harmonic Distortion (THD)
10-13%

Lamps by Wattage

1x26W, 2x26W

Ballast Lamp Type

The type of bulb the ballast can fire.

Ballast Lamp Type
4-Pin
Description

Reviews

Q & A
Advance Electronic Inventory Space Saver* SmartMate** Ballast Kit Ignites One or Two 26 Watt Four-Pin Quad or Triple Tube CFL's. See Note Section for More Compatible Lamps***. LAMP(S) NOT INCLUDED.

REVIEW SNAPSHOT®

by PowerReviews
Advance Transformer26 Watt, 120-277 Volt Two Lamp Plug-in CFL Electronic Ballast

4.5

(based on 2 reviews)

Reviewed by 2 customers

Sort by

Displaying reviews 1-2

Back to top


4.0

So easy to install!

By weatherman

From Atlanta, Ga.

About Me Professional

Verified Buyer

Pros

  • Easy To Install

Cons

    Best Uses

    • Repair or replacement

    Comments about Advance Transformer 26 Watt, 120-277 Volt Two Lamp Plug-in CFL Electronic Ballast:

    Easy to install

    • Primary use:
    • Business

    5.0

    Stick with a good brand name.

    By FacMan

    From Marysville, Ohio

    About Me Professional

    See all my reviews

    Verified Buyer

    Pros

    • Easy To Install

    Cons

      Best Uses

      • Repair or replacement

      Comments about Advance Transformer 26 Watt, 120-277 Volt Two Lamp Plug-in CFL Electronic Ballast:

      Product sold as kit includes wire release tool and color coded connection wires. Easy color coded hook up and is perfect fit OEM replacement.

      • Primary use:
      • Business
