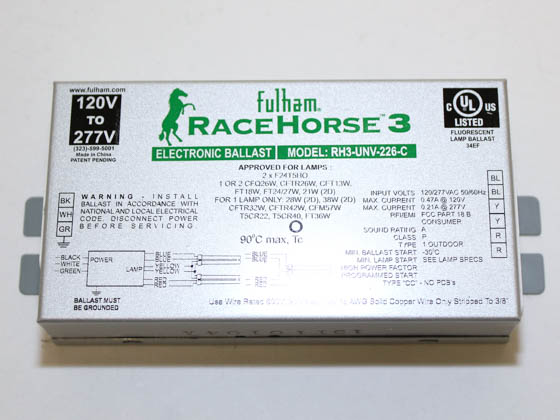

Fulham RaceHorse 3 Electronic CFL Ballast Contractor Kit, 120/277 Volt

SKU: RHA-UNV-226-K | Ordering Code: RHA-UNV-226-K

Clearance ItemOnly 9 left in stock. Will not be re-stocked. Typically ships within one business day.
Price per Ballast
Each $29.49
Ballasts per Case
50
 x
Add to Cart
Save to BulbTrack ?

My BulbTrack

Finding the lighting solutions you need might be simple at Bulbs.com, but buying them is even easier. Thanks to our exclusive BulbTrack feature, you can quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page. Products are added to your My BulbTrack page when you check out from your shopping cart or add them from the product description pages.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home. Make buying your replacement lighting as simple as it should be. Create your BulbTrack today!



Product Details

Brand

Fulham

Input Volts

120/277

Input Watts

57

Number of Lamps

2

Ballast Type

Magnetic ballasts are a legacy technology and use inductance to transform the line voltage to the voltage required to "fire" or excite the gasses in a lamp. Electronic ballasts use a variety of starting methods, and are more efficient than magnetic ballasts in converting input power to the proper lamp power and operate fluorescent lamps at higher frequencies, resulting in an overall lamp-ballast system – increasing efficacy 15% to 20% over a magnetic equivalent.

Ballast Type
Electronic

Height (in)

For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.

Height (in)
1

Width (in)

For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.

Width (in)
2.4

Length (in)

Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.

Length (in)
5

Power Factor

0.98

Total Harmonic Distortion (THD)

Total harmonic distortion, or THD, is the measure of how much a ballast can distort the waveform of that building’s power supply and interfere with other equipment. Electronic ballasts today are rated at less than 20 percent, 15 percent, or less than 10 percent THD. The magnetic ballast is rated in the 20 to 28 percent range. The lower the THD the better and more efficient the ballast, and the less likely it is to interfere with other electronic equipment.

Total Harmonic Distortion (THD)
10%

Lamps by Wattage

113-142, 213-226

Warranty

3 years

Ballast Lamp Type

The type of bulb the ballast can fire.

Ballast Lamp Type
4-Pin

Maximum Current (Amps)

The maximum amount of Amps that a ballast can hold.

Maximum Current (Amps)
0.47

Maximum Load (Watts)

The maximum power that a product can handle.

Maximum Load (Watts)
57
Description

Reviews

Q & A

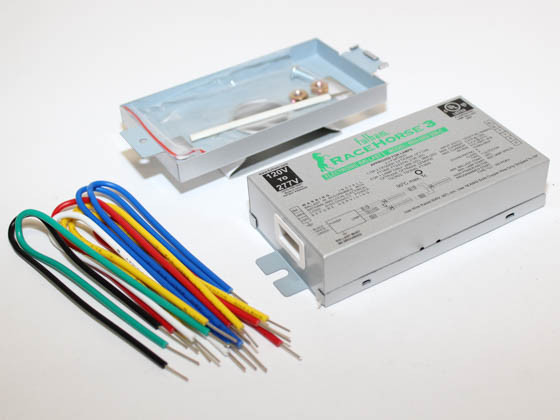

Fulham Brand RaceHorse 3 Electronic CFL Ballast Contractor Kit.  Includes RaceHorse ballast, snap mount stud adapter plate, lead wire set and wire removing tool.  120/277 Volt.

  • Ballast Lamp Starting Mode:  Programmed Start
  • End-of-lamp-life protection
  • Cold starting
  • Auto-restart
  • Versatile mounting
  • Dual entry color coded connector

RH3-UNV-226-K CFL Ballast Ignites:

  • One - 13CFT/E, 26CFQ/E, 36CFTR/E, 32CFTR/E, 42CFTR/E. 2D21W, 2D28W, 2D38W, T5CR22, FT18W, FT36W, T5CR40, FT24/E, 57CFM.
  • Two - 13CFT/E, FT18W, 26CFQ/E, 26CFTR/E, FT24/E, 2D21W, F24T5HO.
