2X4 18 Cell Parabolic Troffer Fixture for Three F32T8 Lamps
SKU: 24D3GS33218DBL3Y | Ordering
Code: 24D3GS33218DBL3Y
Ships from SupplierUsually ships in 4-5 business days.
| Price per Fixture |
| Each |
$78.99 |
|
x
Fixture
Add to Cart
Save to BulbTrack
My BulbTrack
Finding the lighting solutions you need might be simple at Bulbs.com, but buying them is even easier.
Thanks to our exclusive BulbTrack feature, you can quickly and easily order the products you
have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack
page. Products are added to your My BulbTrack page when you check out from your shopping cart or add
them from the product description pages.
Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity
or clicking on the product image. You can even add notes to each product to record where it is used
in your business or home. Make buying your replacement lighting as simple as it should be.
Create your BulbTrack today!
|
Product Details
Brand | Philips - Crescent/Stonco |
Line Voltage | 120/277 |
Number of Lamps | 3 |
Ballast Type
Magnetic ballasts are a legacy technology and use inductance to transform the line voltage to the voltage required to "fire" or excite the gasses in a lamp. Electronic ballasts use a variety of starting methods, and are more efficient than magnetic ballasts in converting input power to the proper lamp power and operate fluorescent lamps at higher frequencies, resulting in an overall lamp-ballast system – increasing efficacy 15% to 20% over a magnetic equivalent.
Ballast Type | Electronic |
Replacement Lamp | F32T8 |
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
Height (in) | 5.75 |
Width (in)
For fixtures and ballasts, width is the measurement of the total depth of the product in inches.
Width (in) | 6.625 |
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
Length (in) | 50 |
Watts per Bulb | 32 |
Housing | Die-formed of cold-rolled steel |
Bulb Type Supplied
Type of bulb supplied with the fixture
Bulb Type Supplied | None |
Installation Type
The way in which a fixture attaches to its relevant surface.
Installation Type | Flush |
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Damp Location | Yes |

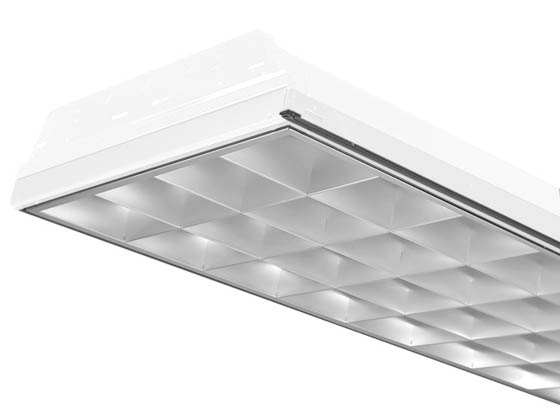

Crescent Recessed Parabolic Troffer Fixture:
- 2X4 18 Deep Cells
- Parabolic Troffer Fixture for Three 48" F32T8 Lamps of 120-277 Voltage
- Anodized aluminum parabolic louvers closely controlled for uniform low-brightness appearance and interlocked to avoid vibration
- Housing is constructed for added strength and maximum corrosion resistance
- Can be hinged or latched from either side
- Lamps NOT Included
