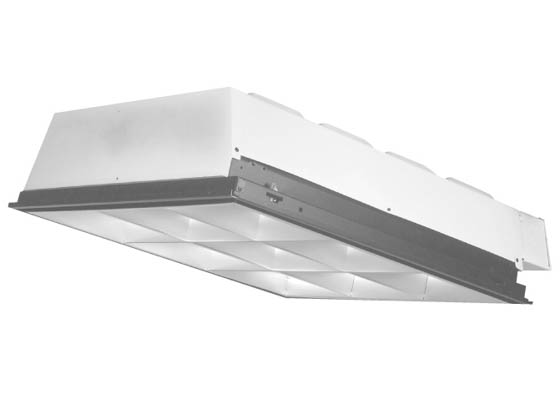

2X2 9 Cell Parabolic Troffer Fixture for Two FB32T8-U6 Lamps

SKU: 22D3GS2U609DBL2Y | Ordering Code: 22D3GS2U609DBL2Y

Sorry, this product is not available to purchase.

Product Details

Brand

Philips - Crescent/Stonco

Line Voltage

120/277

Number of Lamps

2

Ballast Type

Magnetic ballasts are a legacy technology and use inductance to transform the line voltage to the voltage required to "fire" or excite the gasses in a lamp. Electronic ballasts use a variety of starting methods, and are more efficient than magnetic ballasts in converting input power to the proper lamp power and operate fluorescent lamps at higher frequencies, resulting in an overall lamp-ballast system – increasing efficacy 15% to 20% over a magnetic equivalent.

Ballast Type
Electronic

Replacement Lamp

F32T8

Height (in)

For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.

Height (in)
6

Width (in)

For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.

Width (in)
6.625

Length (in)

Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.

Length (in)
50

Watts per Bulb

32

Housing

Die-formed of cold-rolled steel

Bulb Type Supplied

Type of bulb supplied with the fixture

Bulb Type Supplied
None

Installation Type

The way in which a fixture attaches to its relevant surface.

Installation Type
Recessed

Damp Location

Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment

Damp Location
Yes
Description

Reviews

Q & A

 Crescent Recessed Parabolic Troffer Fixture:

  • 2X2 9 Deep Cells
  • Parabolic Troffer Fixture for Two FB32T8-U6 Lamps of 120-277 Voltage
  • Anodized aluminum parabolic louvers closely controlled for uniform low-brightness appearance and interlocked to avoid vibration
  • Can be hinged or latched from either side
  • Housing is constructed for added strength and maximum corrosion resistance
  • Lamps NOT Included
