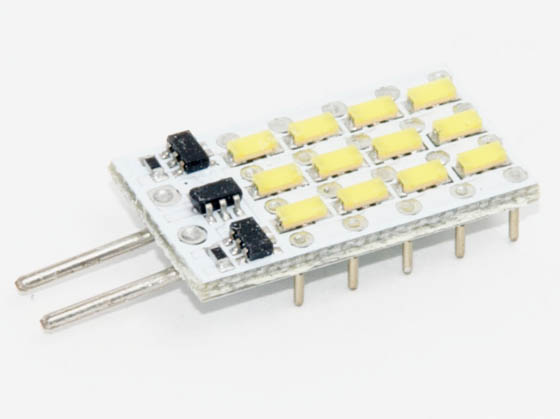

1 Watt, 12 Volt DIMMABLE LED Cool White 6500K Bi-Pin Bulb.

SKU: AAC10G4CW | Ordering Code: AAC10G4CW

Sorry, this product is not available to purchase.

Product Details

Brand

Array Lighting

Energy Used

A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.

Energy Used
1 Watt

Volts

A measure of "electrical pressure" between two points. The voltage specification of an incandescent lamp is the electrical "pressure" required to drive it at its designed point. The "voltage" of a ballast (e.g. 120 V) refers to the line voltage coming from the power source and is connected to the ballast.

Volts
12

Base

The end (or ends) of the lamp that fits into the socket.

Base
G4

Width (in)

For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.

Width (in)
0.5

Length (in)

Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.

Length (in)
1.25

Average Rated Life (hr)

A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.

Average Rated Life (hr)
20000

Brightness (Lumens)

A rating of the inital light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.

Brightness (Lumens)
61

Color Temperature (Kelvin)

An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).

Color Temperature (Kelvin)
6500K

Bulb Technology

The technology implemented by the bulb, e.g. incandescent, halogen, LED

Bulb Technology
LED

Bulb Finish

The surface finish of a bulb, which may affect the quality of the light emitted.

Bulb Finish
Clear

Bulb Color

The color of the light produced by a bulb

Bulb Color
Cool White

Dimmable

Indicates whether a bulb can be dimmed in conjunction with a suitable dimmer control.

Dimmable
Yes

Product Notes: Excessive or Continuous Heat Build-up will Drastically Reduce the Life of LED Products. Well Ventilated AND Open Fixtures Are Required for Proper Light Output and Product Life. DO NOT HOT-SWAP THIS BULB-Turn Off Power To Fixture Before Installation. If Your Fixture Already Has a Lens, Remove It (If Possible) for Best Optics and Heat Exchange. NOT DESIGNED FOR OUTDOOR USE NOR FOR USE IN WET LOCATIONS.

Description

Reviews

Q & A

Array Lighting Brand 1 Watt DIMMABLE lamp replaces many bi-pin halogen capsule lamps.

  • Perfect to use anywhere you are using a 12 volt capsule with G4 bi-pin base

  • 6500K "Daylight White" color for greater brightness and visibility

  • No lead or mercury means easy and environmentally safe disposal

  • 61 Lumens initial light output is comparable to many lower wattage halogen capsules

  • VERY long life - rated to still put out 70% as much light after 20,000 hours of operation as it does when brand new

CHECK PRODUCT FIT BEFORE INVESTING IN MANY - Product May Not Fit in Your Fixture.  Also, NOT RECOMMENDED for use in enclosed fixtures because heat buildup can shorten life.  DO NOT "hot swap" this lamp.  Turn off fixture before replacing existing bulb.

Do you have questions about this product?

get answers from real customers and in-house experts with AnswerBox.

1 Question | 1 Answer
Displaying question 1
  • Q:

    I have in case bi pin halogen lighting in my jewelry showcases that have transformers for them. There are 5-6 bulbs in each strip. Can I replace my halogens with this product?
    Asked on 8/13/2012 by brazotto from MA.

    1 answer

    • Bulbs.com LS1 Certified Lighting Specialist

      A:

      If your halogens bulbs have a G4 bi-pin base, then these will work. Contact Customer Service at 888-455-2800 with further questions.

      Answered on 8/21/2012 by Anonymous
