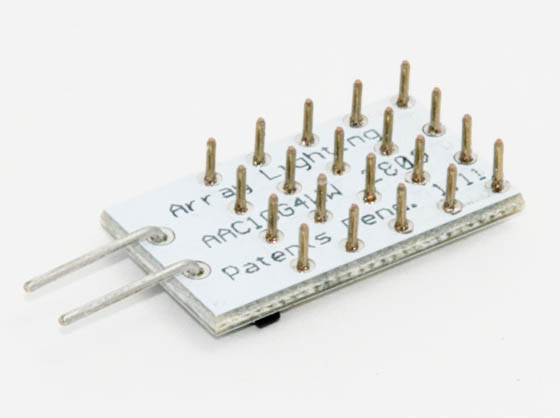

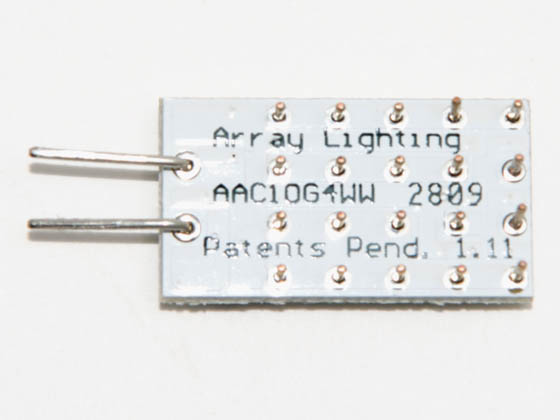

1 Watt, 12 Volt DIMMABLE LED Warm White Bi-Pin Bulb.

SKU: AAC10G4WW | Ordering Code: AAC10G4WW

Sorry, this product is not available to purchase.

Product Details

Brand

Array Lighting

Energy Used

A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.

Energy Used
1 Watt

Volts

A measure of "electrical pressure" between two points. The voltage specification of an incandescent lamp is the electrical "pressure" required to drive it at its designed point. The "voltage" of a ballast (e.g. 120 V) refers to the line voltage coming from the power source and is connected to the ballast.

Volts
12

Base

The end (or ends) of the lamp that fits into the socket.

Base
G4

Width (in)

For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.

Width (in)
.5

Length (in)

Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.

Length (in)
1.25

Average Rated Life (hr)

A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.

Average Rated Life (hr)
20,000

Brightness (Lumens)

A rating of the inital light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.

Brightness (Lumens)
60

Finish

Light bulbs: the coating applied to the bulb causing light to be emitted in certain colors or color temperatures (see Color Temperature). Popular finishes include clear, frosted, colors (amber, blue, green, red, etc.) as well as color temperature designations ranging from warm white (2700K) to natural daylight (6500K). Fixtures: the decorative finish of the item.

Finish
Warm White

Color Temperature (Kelvin)

An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).

Color Temperature (Kelvin)
3000K

Bulb Technology

The technology implemented by the bulb, e.g. incandescent, halogen, LED

Bulb Technology
LED

Dimmable

Indicates whether a bulb can be dimmed in conjunction with a suitable dimmer control.

Dimmable
Yes

Product Notes: Excessive or Continuous Heat Build-up will Drastically Reduce the Life of LED Products. Well Ventilated AND Open Fixtures Are Required for Proper Light Output and Product Life. DO NOT HOT-SWAP THIS BULB-Turn Off Power To Fixture Before Installation. If Your Fixture Already Has a Lens, Remove It (If Possible) for Best Optics and Heat Exchange. NOT DESIGNED FOR OUTDOOR USE NOR FOR USE IN WET LOCATIONS.

Description

Reviews

Q & A

Array Lighting Brand 1 Watt DIMMABLE LED lamp replaces many bi-pin halogen capsule lamps.

  • Perfect to use anywhere you are using a 12 volt capsule with G4 bi-pin base

  • 3000K "Warm White" color closely replicates the color of halogen capsules

  • No lead or mercury means easy and environmentally safe disposal

  • 60 Lumens initial light output is comparable to many lower wattage halogen capsules

  • VERY long life - rated to still put out 70% as much light after 20,000 hours of operation as it does when brand new

CHECK PRODUCT FIT BEFORE INVESTING IN MANY - Product May Not Fit in Your Fixture.  Also, NOT RECOMMENDED for use in enclosed fixtures because heat buildup can shorten life.  DO NOT "hot swap" this lamp.  Turn off fixture before replacing existing bulb.

REVIEW SNAPSHOT®

by PowerReviews
Array Lighting1 Watt, 12 Volt DIMMABLE LED Warm White Bi-Pin Bulb.

4.5

(based on 2 reviews)

Reviewed by 2 customers

Sort by

Displaying reviews 1-2

Back to top

(1 of 1 customers found this review helpful)


4.0

Good power savers

By Motorhomer

From New Jersey

About Me Quality Oriented

See all my reviews

Verified Buyer

Pros

  • Long Life
  • Reduces Energy Costs

Cons

  • A little harsh

Best Uses

  • General Lighting
  • Kitchen

Comments about Array Lighting 1 Watt, 12 Volt DIMMABLE LED Warm White Bi-Pin Bulb.:

A friend bought these bulbs for his motorhome and recommended them to me, my main reasons for using the bulbs are for energy saving and longer life. With the large amount of halogen bulbs in motorhomes both of those factors really add up. The energy saving is real and makes a big difference, as for the longer life I need much more time. Although these are the warmest bulbs we could find the are still very white and therefore a little harsh when directly compared to halogens. It takes a little time but you will get used to it, as well as the increased light you will get in your room. These bulbs dim pretty much all the way down which is excellent for creating a more subdued late lighting environment.

  • Primary use:
  • Personal

(5 of 5 customers found this review helpful)


5.0

Replaces a 10W T4 Capsule bulb

By Steve L

From Gardnerville, NV

About Me Energy conscious

Pros

  • 110th the power
  • Bright
  • Bright as 10W
  • Excellent for RV
  • Long Life
  • Perfect fit for
  • Reduces Energy Costs
  • Runs Cool
  • Warm glow

Cons

  • Cost more than standard

Best Uses

  • Replace 10W RV bulb

Comments about Array Lighting 1 Watt, 12 Volt DIMMABLE LED Warm White Bi-Pin Bulb.:

[...] excellent build quality. I replaced eight 10W capsule bulbs in my RV. The replaced areas are three over the entertainment center and five over the couch and kitchen prep area. Even though the LED's have one watt of power, they appear brighter than the high energy bulbs. The light of the 3000 is warm. I did not order the 5000 as the light would appear harsh and the 6500 would appear almost blue. The use of LED's in our RV greatly reduce the power used during dry camping and save big dollars in excess running of the generator. Wish Bulbs.com carried more LED's for RV applications. Another factor with LED's is that they are so much cooler than T4 halogen bulbs. Hope this helps others as I am amazed at the light output. Will know more, in the future, how durable they are; until then, I am a happy camper.

  • Primary use:
  • Personal

Displaying reviews 1-2

Back to top

Do you have questions about this product?

get answers from real customers and in-house experts with AnswerBox.

1 Question | 2 Answers
Displaying question 1
  • Q:

    Is this a 12VAC or 12VDC bulb?
    Asked on 9/4/2011 by idrift from earth

    2 answers

    • CUSTOMER CARE

      A:

      This bulb is 12VAC.

      Answered on 9/6/2011 by Product Support from Bulbs.com
    • CUSTOMER CARE

      A:

      This bulb is 12VAC.

      Answered on 9/6/2011 by Product Support from Bulbs.com
