Value Brand, 35 Watt (0.412 amp), 85 Volt T-3 HID Headlamp.

SKU: CD2R | Ordering Code: D2R

Sorry, this product is not available to purchase.

Product Details

Brand

CEC Industries

Energy Used

A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.

Energy Used
35 Watts

Volts

A measure of "electrical pressure" between two points. The voltage specification of an incandescent lamp is the electrical "pressure" required to drive it at its designed point. The "voltage" of a ballast (e.g. 120 V) refers to the line voltage coming from the power source and is connected to the ballast.

Volts
85

Bulb Shape

The description of the general appearance of a lamp/bulb consists of a letter(s) followed by a number. The letter indicates the shape of the bulb and the number relates to the diameter of the bulb in eighths of an inch. For example, a common household bulb is the A-19. The bulb is "A" shape and the diameter would be nineteen 8ths of an inch, or 2 3/8".

Bulb Shape
T-3

Base

The end (or ends) of the lamp that fits into the socket.

Base
P32d2

Diameter (in)

Light bulbs: a measurement of a bulb's width taken at the widest point of the bulb. Fixtures: the measurement across the widest point of a circular fixture.

Diameter (in)
0.375

Length (in)

Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.

Length (in)
3.1

Average Rated Life (hr)

A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.

Average Rated Life (hr)
1000

Bulb Technology

The technology implemented by the bulb, e.g. incandescent, halogen, LED

Bulb Technology
Xenon

Candle Power

A measure of how much light the bulb produces, measured at the bulb, based on the amount originally emitted by a single candle.

Candle Power
114
Description

Reviews

Q & A

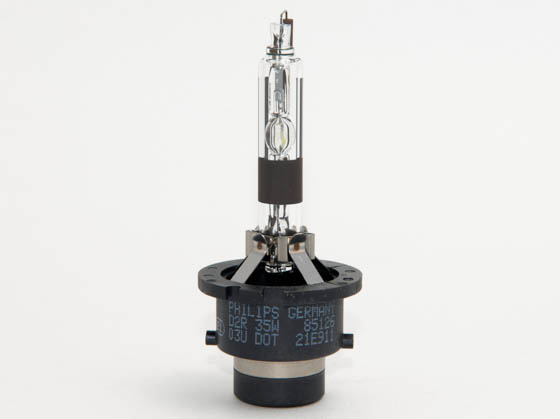

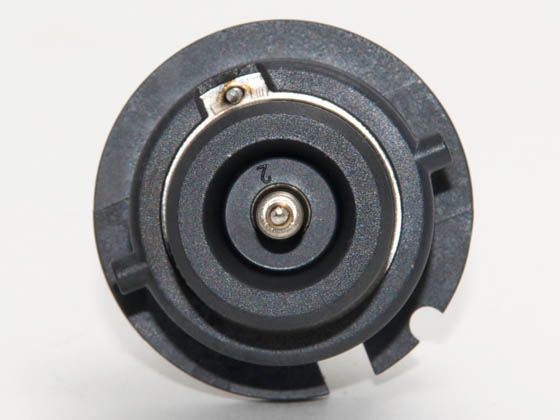

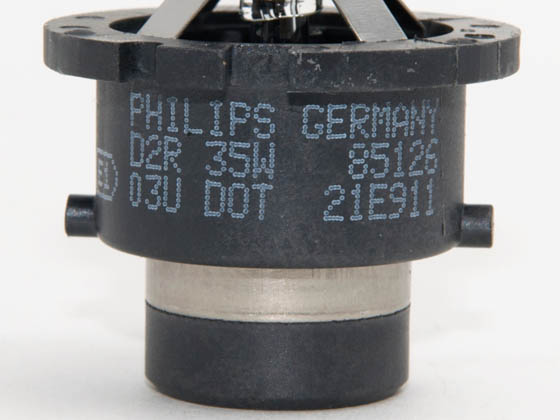

CEC Industries brand XENON HID D2R automotive headlamp.  35 Watt and 85 Volt T-3 HID Headlamp with P32d2 Base.  NOT LEGAL FOR RETROFIT APPLICATIONS

  • Far brighter and whiter light than ordinary halogen lamps

  • Longer and Wider beam than standard lamps

  • Match number D2R with your current lamp to get an exact match

Do you have questions about this product?

get answers from real customers and in-house experts with AnswerBox.

1 Question | 1 Answer
Displaying question 1
  • Q:

    what is the color 4300K or 6000K ? I need D2R 6000k
    Asked on 9/11/2012 by Ray from crete,IL

    1 answer

    • Bulbs.com LS1 Certified Lighting Specialist

      A:

      This headlamp has a 4000K color temperature.

      Answered on 9/14/2012 by Anonymous
