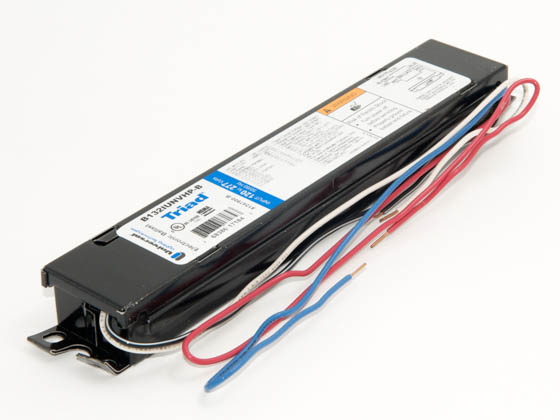

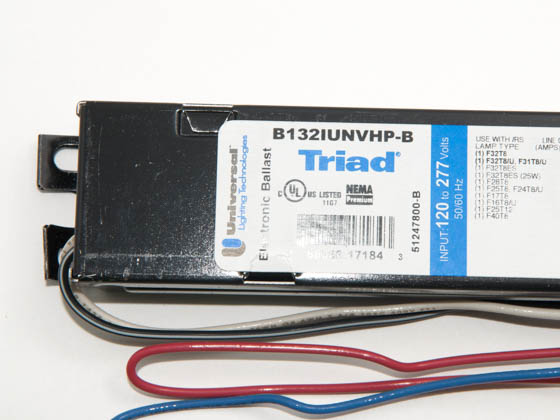

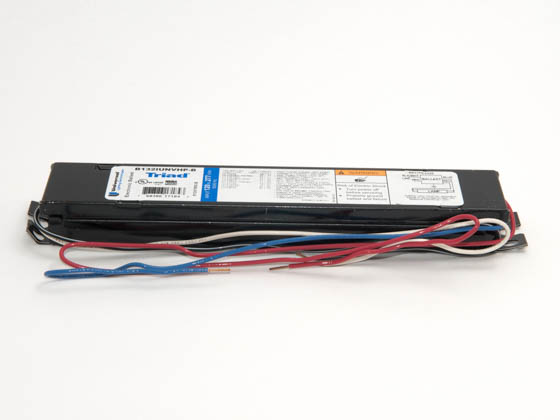

120-277 Volt One Lamp Standard F32T8 Electronic IS Ballast, Standard Ballast Factor Model

SKU: B132IUNVHP-B000I | Ordering Code: B132IUNVHP-B000I (Replaced by B132IUNVHP-N000I)

Sorry, this product is not available to purchase.

Product Details

Brand

Universal

Input Volts

120-277

Input Watts

17-37

Number of Lamps

1

Ballast Factor

The percentage of a lamp's rated lumen output that can be expected when operated on a specific commercially available ballast. For example, a ballast with a ballast factor of 0.93 will result in the lamps emitting 93% of their rated lumen output. A ballast with a lower ballast factor results in less light output and also generally consumes less power.

Ballast Factor
85-89%

Ballast Type

Magnetic ballasts are a legacy technology and use inductance to transform the line voltage to the voltage required to "fire" or excite the gasses in a lamp. Electronic ballasts use a variety of starting methods, and are more efficient than magnetic ballasts in converting input power to the proper lamp power and operate fluorescent lamps at higher frequencies, resulting in an overall lamp-ballast system – increasing efficacy 15% to 20% over a magnetic equivalent.

Ballast Type
Electronic

Height (in)

For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.

Height (in)
1

Width (in)

For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.

Width (in)
1.5

Length (in)

Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.

Length (in)
9.5

Power Factor

95%

Total Harmonic Distortion (THD)

Total harmonic distortion, or THD, is the measure of how much a ballast can distort the waveform of that building’s power supply and interfere with other equipment. Electronic ballasts today are rated at less than 20 percent, 15 percent, or less than 10 percent THD. The magnetic ballast is rated in the 20 to 28 percent range. The lower the THD the better and more efficient the ballast, and the less likely it is to interfere with other electronic equipment.

Total Harmonic Distortion (THD)
10-15%

Lamps by Wattage

1x17W-40W

Ballast Lamp Type

The type of bulb the ballast can fire.

Ballast Lamp Type
T8

Product Notes: Used most often in pre-existing fixtures in well-lit areas. Using these High Performance (.88 Ballast Factor) Standard Ballast Factor ballasts will provide a well-lit, interference-free work environment. Typical application: Office space with overhead lighting and electricity costs of < $0.10 per kWh.

Description

Reviews

Q & A
Universal Triad Standard Electronic Instant Start Ballast WITH STANDARD BALLAST FACTOR Ignites One 17-40W T8 or One 25W T12 Linear or U-shaped Fluorescent Lamp of 120-277 Voltage. Optimized for One F32T8 Lamp. LAMP NOT INCLUDED.
