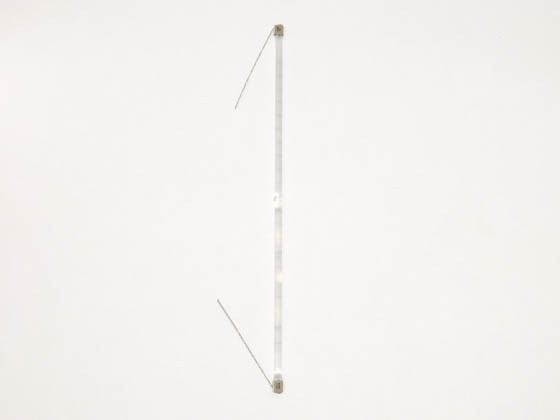

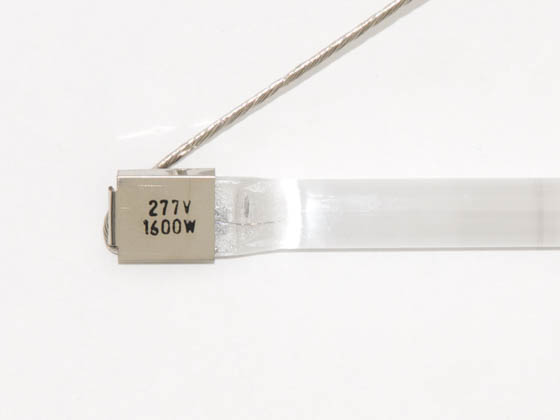

1600 Watt, 277 Volt Frosted T3 Halogen Double Ended Heat Lamp with 6" Leads

SKU: W-17028 | Ordering Code: 17028

Sorry, this product is not available to purchase.

Product Details

Brand

Eiko

Energy Used

A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.

Energy Used
1600 Watts

Volts

A measure of "electrical pressure" between two points. The voltage specification of an incandescent lamp is the electrical "pressure" required to drive it at its designed point. The "voltage" of a ballast (e.g. 120 V) refers to the line voltage coming from the power source and is connected to the ballast.

Volts
277

Bulb Shape

The description of the general appearance of a lamp/bulb consists of a letter(s) followed by a number. The letter indicates the shape of the bulb and the number relates to the diameter of the bulb in eighths of an inch. For example, a common household bulb is the A-19. The bulb is "A" shape and the diameter would be nineteen 8ths of an inch, or 2 3/8".

Bulb Shape
T-3

Base

The end (or ends) of the lamp that fits into the socket.

Base
Lead wires

Class and Filament

A designation used to describe the shape or structure of the filament in an incandescent or halogen light bulb. Most commonly used for specialty products like rough service and antique replica lamps.

Class and Filament
C-8

Diameter (in)

Light bulbs: a measurement of a bulb's width taken at the widest point of the bulb. Fixtures: the measurement across the widest point of a circular fixture.

Diameter (in)
0.4

Length (in)

Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.

Length (in)
19.8

Average Rated Life (hr)

A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.

Average Rated Life (hr)
5000

Finish

Light bulbs: the coating applied to the bulb causing light to be emitted in certain colors or color temperatures (see Color Temperature). Popular finishes include clear, frosted, colors (amber, blue, green, red, etc.) as well as color temperature designations ranging from warm white (2700K) to natural daylight (6500K). Fixtures: the decorative finish of the item.

Finish
Frost

Color Temperature (Kelvin)

An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).

Color Temperature (Kelvin)
2400K

GE

A General Electric brand-specific product number for an equivalent item and is provided for the purpose of cross-referencing.

GE
17028

Osram Sylvania

An Osram Sylvania brand-specific product number for an equivalent item and is provided for the purpose of cross-referencing.

Osram Sylvania
17028

Bulb Technology

The technology implemented by the bulb, e.g. incandescent, halogen, LED

Bulb Technology
Halogen
Description

Reviews

Q & A

Eiko brand double-ended Frosted linear halogen lamp.  1600 Watts for bright, high intensity heat and light.  277 volts for use in high-voltage equipment.

  • Match number 17028 with your current lamp to get an exact match

DOUBLE CHECK your lamp length.  Higher wattage linear halogen lamps come in a variety of lengths.  Length for this version is 19.80"
