50 Watt, 12 Volt Bulb
SKU: W-BRL | Ordering
Code: BRL
In Stock
| Price per Bulb |
| 1 to 11 |
$4.99 Each |
| 12 to 17 |
$4.59 Each |
| 18 to 30 |
$4.09 Each |
| 31 + |
$3.69 Each |
Bulbs per Case |
| 25 |
|
x
Add to Cart
Save to BulbTrack
My BulbTrack
Finding the lighting solutions you need might be simple at Bulbs.com, but buying them is even easier.
Thanks to our exclusive BulbTrack feature, you can quickly and easily order the products you
have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack
page. Products are added to your My BulbTrack page when you check out from your shopping cart or add
them from the product description pages.
Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity
or clicking on the product image. You can even add notes to each product to record where it is used
in your business or home. Make buying your replacement lighting as simple as it should be.
Create your BulbTrack today!
|
Product Details
Brand | Eiko |
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
Energy Used | 50 Watts |
Volts
A measure of "electrical pressure" between two points. The voltage specification of an incandescent lamp is the electrical "pressure" required to drive it at its designed point. The "voltage" of a ballast (e.g. 120 V) refers to the line voltage coming from the power source and is connected to the ballast.
Volts | 12 |
Base
The end (or ends) of the lamp that fits into the socket.
Base | G6.35 |
Class and Filament
A designation used to describe the shape or structure of the filament in an incandescent or halogen light bulb. Most commonly used for specialty products like rough service and antique replica lamps.
Class and Filament | C BAR 6 |
Diameter (in)
Light bulbs: a measurement of a bulb's width taken at the widest point of the bulb. Fixtures: the measurement across the widest point of a circular fixture.
Diameter (in) | 0.47 |
Length (in)
Also referred to as "Maximum Overall Length" (MOL). For light bulbs, it measures the length of a light bulb, from the top of the bulb to the bottom of the base or pins and is typically expressed in inches. For light fixtures and ballasts, it applies to the total horizontal length of the item.
Length (in) | 1.73 |
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
Average Rated Life (hr) | 50 |
Brightness (Lumens)
A rating of the inital light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
Brightness (Lumens) | 1400 |
Bulb Technology
The technology implemented by the bulb, e.g. incandescent, halogen, LED
Bulb Technology | Halogen |

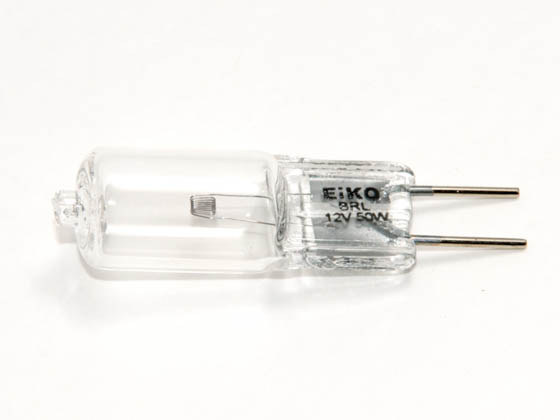

Eiko brand 50 Watt halogen capsules. JC type, 12 volts for low voltage systems. Low voltage means a smaller fillament, for greater optical control.

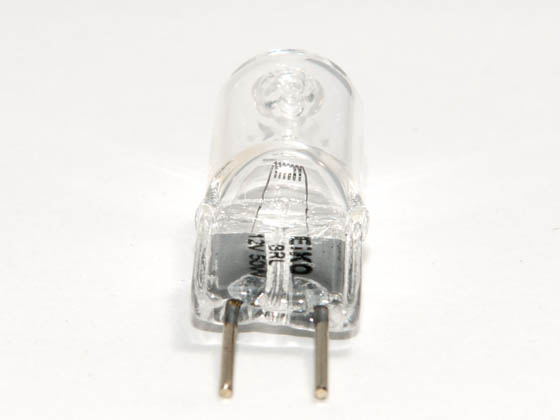

DOUBLE CHECK the distance separating the two pins on your existing lamp. They come in different sizes and if the pins do not match up correctly, the capsule will not fit properly. Distance between pin tips for this version is 6.35mm (0.25")
NOT for general purpose lighting. Filament design provides extremely high intensity, very bright white light, rated for 50 hours life. Often used in scientific and photopraphic applications.
